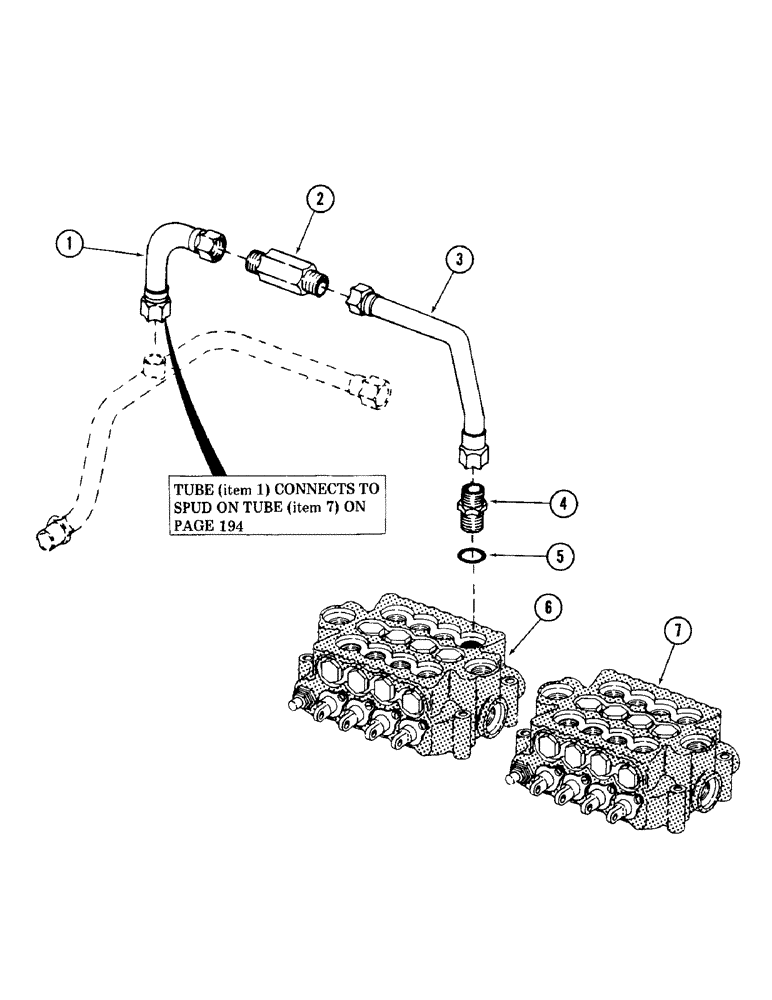

Запчасти Case 980 (196) - FAST HOIST HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S221086

TUBE,1.25" OD x 4.25, 9.39" L

LINE, hydraulic

1шт.

2

S93154

VALVE

Check

1шт.

3

S221085

TUBE,1.25" OD

LINE, hydraulic

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

(1" tube) - 1-5/16"-12 male x 7/8"-14 male 37 degree flared

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

1шт.

6

REF

INSTRUCTION

VALVE, 4-spool main - (For breakdown, see figure 152)

1шт.

7

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.
