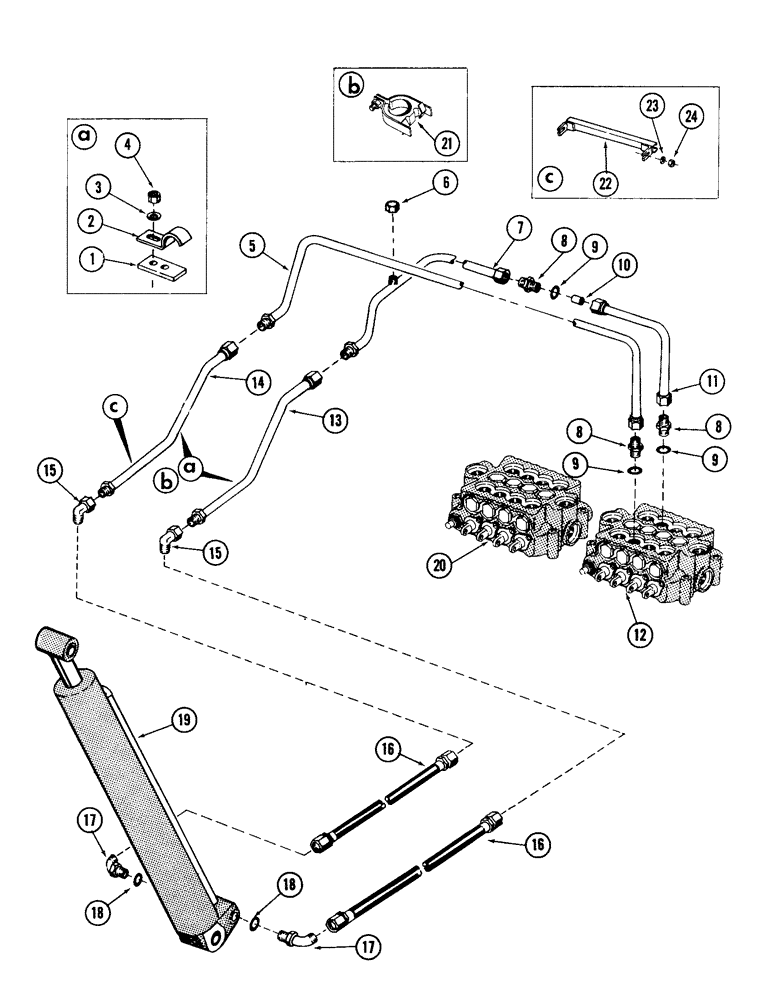

Запчасти Case 980 (194) - HOIST CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
S86720
SPARE PART (Used on units with S/N 6203000 thru 6203568)
2шт.
2
S74460
SPARE PART Tube - (Used on units with S/N 6203000 thru 6203568)
2шт.
3
95-25
WASHER, flat - 3/8" (Used on units with S/N 6203000 thru 620568)
2шт.
4
131-6
LOCK NUT,3/8"-16, GC
(Used on units with S/N 6203000 thru 6203568)
2шт.
5
S502083
LINE
Hydraulic
1шт.
6
218-758
CAP,37 Degree, 1 5/16"-12
(1" tube) - (37 degree flared) - 1-5/16"-12 female (When ordering S506138 for units without fast hoist, the 218-758 cap (Item 6) would have to be ordered in addition)
1шт.
7
S506138
TUBE ASSY.,0.625" OD x 11, 3.25" L
LINE, hydraulic
1шт.
8
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter, flared
3шт.
9
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
(1.403" OD)
3шт.
10
S79252
REGULATOR
Flow
1шт.
11
S502084
TUBE,1.25" OD
LINE, hydraulic
1шт.
12
REF
INSTRUCTION
VALVE, 4 spool main (For breakdown, see figure 150)
1шт.
13
S502715
TUBE,1.25" OD
SPARE PART LINE, hydraulic
1шт.
14
S502714
SPARE PART LINE, hydraulic 1.25" OD
1шт.
15
218-5234
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw
1шт.
16
S8628
HOSE
High pressure - 1" ID x 36" long - (With 1-5/16"-12 female on couplings)
2шт.
17
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Swivel - 1-5/16"-12 male x 1-5/16"-12 male
2шт.
18
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
(1.403" OD)
2шт.
19
REF
INSTRUCTION
CYLINDER, hoist (For breakdown, see figure 198)
1шт.
20
REF
INSTRUCTION
VALVE, 4 spool main (For breakdown, see figure 152)
1шт.
21
S93266
CLAMP
Tube (Used on units with S/N 6203569 and after)
4шт.
22
S226021
SPARE PART Clamp mounting - (Used on units with S/N 6203569 and after)
1шт.
23
S95569
WASHER
Flat - 1/2" (Used on units with S/N 6203569 and after)
2шт.
