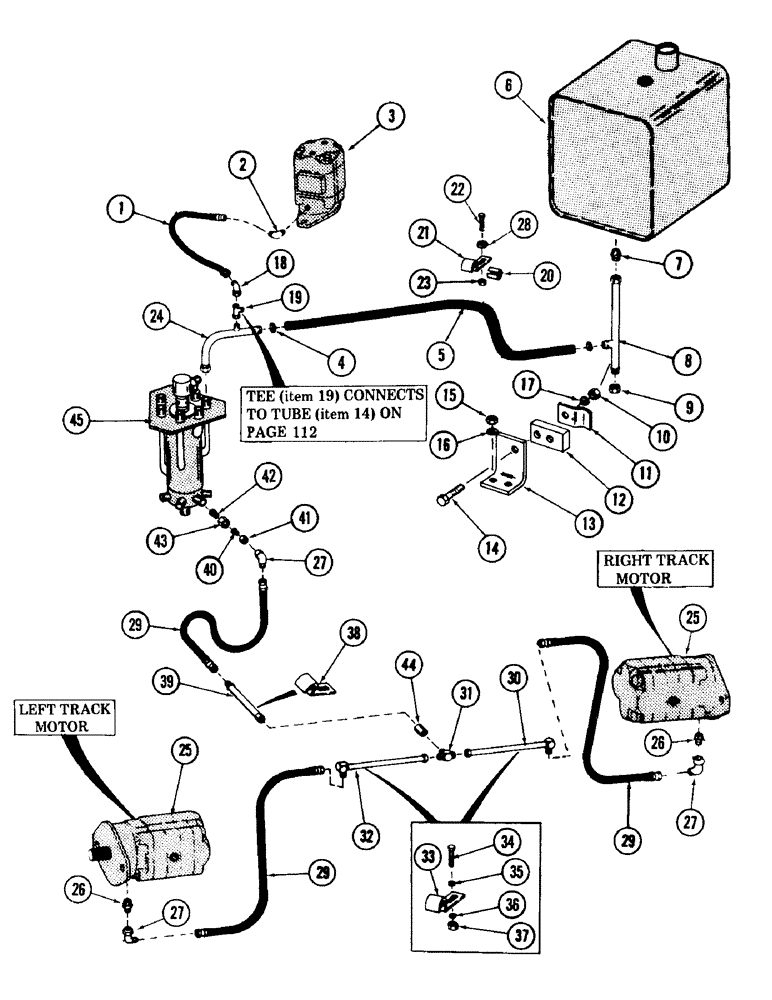

Запчасти Case 980 (180) - DRAIN HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S77121

HOSE

High pressure - 1/4" ID x 20" long (With 9/16"-18 female pressed on couplings)

1шт.

2

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

3

REF

INSTRUCTION

MOTOR, swing (For breakdown, see figure 134)

1шт.

4

S85477

CLAMP

Hose

1шт.

5

HOSE - 1" ID x 65", Use A21575 listed below

1шт.

6

REF

INSTRUCTION

RESERVOIR, hydraulic oil (For breakdown, see figure 144)

1шт.

7

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (1" tube) - 1-5/16"-12 male x 3/4"-11 male - 37 degree flared

1шт.

8

S222919

SPARE PART LINE, hydraulic

1шт.

9

218-758

CAP,37 Degree, 1 5/16"-12

Female

1шт.

10

131-6

LOCK NUT,3/8"-16, GC

1шт.

11

L32065

CLAMP

Tube

1шт.

12

S79936

SPARE PART Spacer

1шт.

13

S92081

BRACKET

ANGLE

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

131-10

NUT,1/2"-13, GB

2шт.

16

95-7

WASHER,7/16"

WASHER, flat - 1/2"

2шт.

17

195-25

WASHER,3/8"

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

19

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

20

S86502

RING

Compression

1шт.

21

S87573

CLAMP

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

131-10

NUT,1/2"-13, GB

1шт.

24

S220252

TUBE,1" OD x 5, 3.75" L

LINE, hydraulic

1шт.

25

REF

INSTRUCTION

MOTOR, track drive (For breakdown, see figure 178)

2шт.

26

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER, flared - (1/2" tube)

2шт.

27

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

(1/2" tube)

3шт.

28

S95569

WASHER

Flat - 3/8"

1шт.

29

D39245

HOSE

High pressure - 3/8" ID x 28" long - (With 3/4"-16 female pressed on couplings)

3шт.

30

S211644

SPARE PART LINE, hydraulic - to RH track drive motor 0.5" OD x 11.5" L

1шт.

31

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

Flared - (1/2" tube)

1шт.

32

S211643

SPARE PART LINE, hydraulic - to LH track drive motor 0.5" OD x 13.5" L

1шт.

33

S79585

CLAMP

2шт.

34

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

35

195-25

WASHER,3/8"

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

A21575

HOSE ASSY.

1" ID x 25 ft. roll

1шт.

37

25-106

NUT,3/8"-16, G5

2шт.

38

S77324

CLAMP

1шт.

39

S209700

SPARE PART Hydraulic 0.5" OD x 12" L

1шт.

40

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, (3/4" to 1/2" reduction) - 3/4"-16 male - 37 degree flared

1шт.

41

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

(3/4" tube) Female

2шт.

42

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, 1-1/16"-12 male - 37 degree flared

1шт.

43

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

(1" tube) Female

1шт.

44

REF

INSTRUCTION

VALVE, check - (For breakdown, see figure 184)

1шт.

45

REF

INSTRUCTION

SWIVEL, hydraulic - 7 port - (For breakdown, see figure 174)

1шт.
