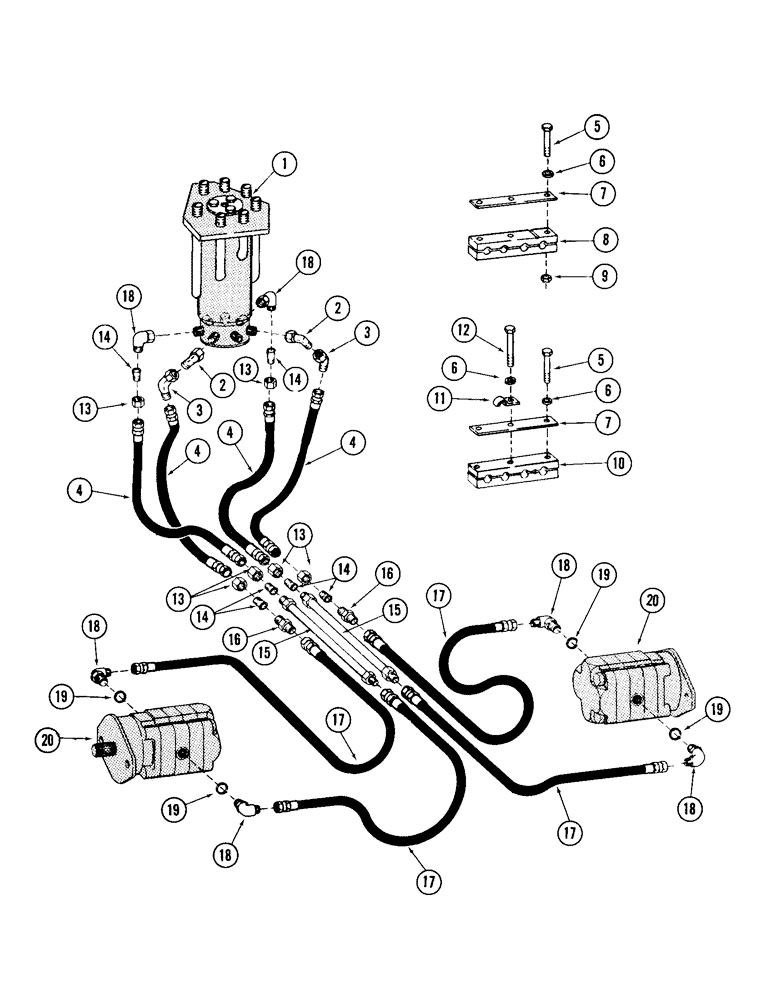

Запчасти Case 980 (176) - SWIVEL TO DRIVE MOTORS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see figure 174)

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(1" tube)

2шт.

3

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

(3/4" tube)

2шт.

4

D44752

HOSE

High pressure - 3/4" ID x 28" - (With 1-1/16"-12 female pressed on couplings)

4шт.

5

12-868

CPSW - 1/2" - 13 NC x 4-1/4" long

2шт.

6

92-8

LOCK WASHER,1/2"

6шт.

7

S79724

SPARE PART 1/4" thick

2шт.

8

S211615

SPARE PART Wood

1шт.

9

25-108

NUT,1/2"-13, G5

6шт.

10

S222576

SPARE PART Wood - (Clamps, Serial Range: hose-undercarriage)

1шт.

11

S77324

CLAMP

2шт.

12

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

13

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

Female

6шт.

14

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, 1-1/16"-12 male

6шт.

15

S211617

SPARE PART ASSY 1.25" OD x 18.65" L

2шт.

16

218-271

ADAPTER - 1" ID x 1.25" OD

2шт.

17

S8628

HOSE

1" ID x 36" long (To elbow)

4шт.

18

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

90 degree swivel

4шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

4шт.

20

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see page 174)

2шт.
