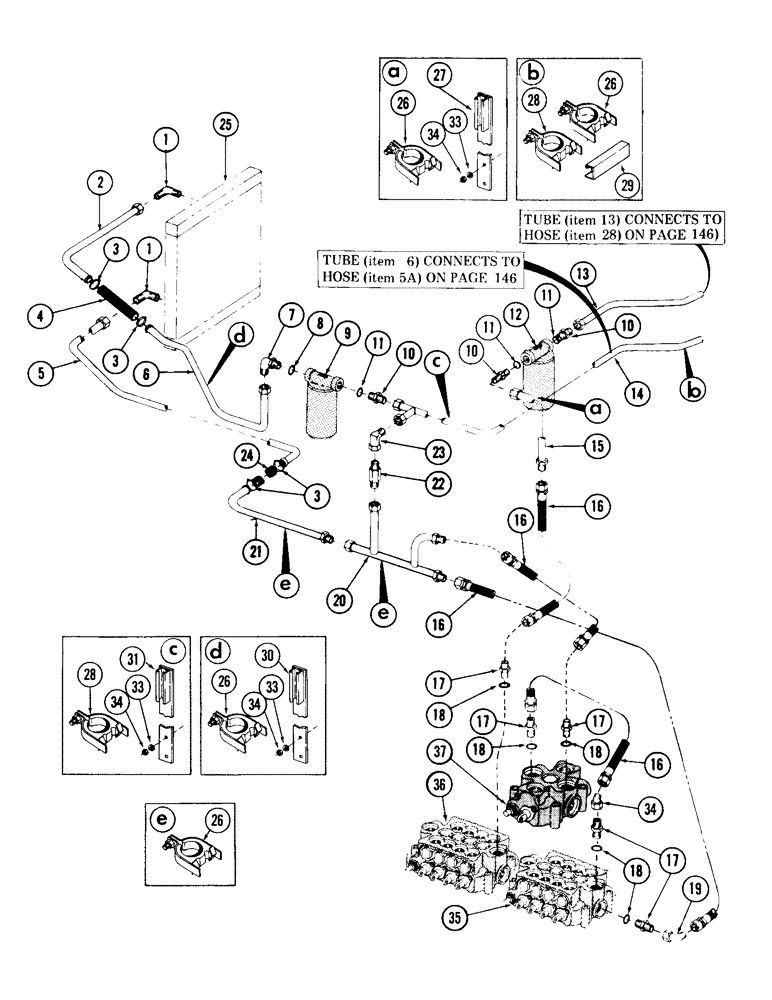

Запчасти Case 980 (161A) - MAIN VALVE TO RESERVOIR AND COOLER HYDRAULICS, (USED WITH SERIAL NUMBER 6203569 AND AFTER) (07) - HYDRAULIC SYSTEM

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

(1" tube) - 1-5/16"-12 male x 1" NPT male

2шт.

2

S219943

SPARE PART LINE, hydraulic - cooler outlet 1.25" OD x 6, 16.3" L

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

4

HOSE, 1-1/4" ID x 21" Use M20682 listed below

1шт.

5

S219942

TUBE,1.25" OD x 20, 5" L

LINE, hydraulic - cooler inlet

1шт.

6

S219803

SPARE PART LINE, hydraulic 1.25" OD

1шт.

7

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

Adjustable - (1-1/4" tube), 37 degree flared

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.711" OD

1шт.

9

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see page 162)

1шт.

10

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER, flared - (1-1/4" tube), 37 degree flared

3шт.

11

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.711" OD

3шт.

12

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see page 164)

1шт.

13

S505851

SPARE PART LINE, hydraulic - to oil reservoir 1.25" OD

1шт.

14

S506419

SPARE PART LINE, hydraulic - to main pump

1шт.

15

S220641

SPARE PART Hydraulic

1шт.

16

S8628

HOSE

High pressure - 1" ID x 36" long - (With 1-5/16"-18 female pressed on couplings)

4шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared

4шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

4шт.

19

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

20

S219883

TUBE,20, 3.38" L

SPARE PART LINE, hydraulic

1шт.

21

S208827

SPARE PART LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

22

S209396

VALVE

SPARE PART Check

1шт.

23

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

1шт.

24

HOSE - 1-1/4" ID x 24" Use M20628 listed below

1шт.

25

S601960

SPARE PART Oil

1шт.

26

S93266

CLAMP

Tube

7шт.

27

S225957

SPARE PART

1шт.

28

S98324

CLAMP

Tube

3шт.

29

S98267

BRACKET

2шт.

30

S226000

SPARE PART

1шт.

31

S226010

SPARE PART

1шт.

32

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

33

131-10

NUT,1/2"-13, GB

8шт.

34

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

1шт.

35

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

36

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

37

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 128)

1шт.
