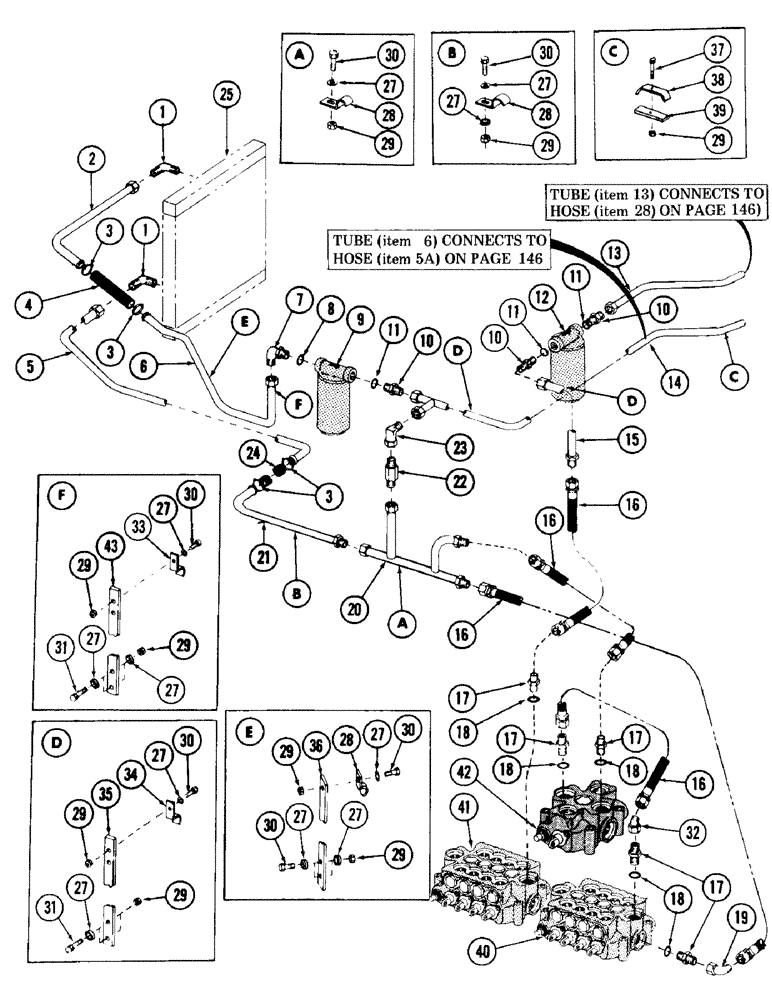

Запчасти Case 980 (160) - MAIN VALVE TO RESERVOIR AND COOLER HYDRAULICS, (USED WITH SERIAL NUMBER 6203000 THRU 6203568) (07) - HYDRAULIC SYSTEM

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

(1" tube), 1-5/16"-12 male x 1" NPT male

2шт.

2

S219943

SPARE PART LINE, hydraulic - cooler outlet 1.25" OD x 6, 16.3" L

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

4

HOSE, 1-1/4" ID x 21" Use M20682 listed below

1шт.

5

S219942

TUBE,1.25" OD x 20, 5" L

LINE, hydraulic - cooler inlet

1шт.

6

S219803

SPARE PART LINE, hydraulic 1.25" OD

1шт.

7

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

Adjustable - (1-1/4" tube),37 degree flared

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.711" OD

1шт.

9

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see figure 162)

1шт.

10

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER (1-1/4" tube), 37 degree flared

3шт.

11

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1.711" OD

3шт.

12

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see figure 164)

1шт.

13

S505851

SPARE PART LINE, hydraulic - to oil reservoir 1.25" OD

1шт.

14

S506419

SPARE PART LINE, hydraulic - to main pump

1шт.

15

S220641

SPARE PART Hydraulic

1шт.

16

S8628

HOSE

High pressure - 1" ID x 36" long - (With 1-5/16"-12 female pressed on couplings)

4шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared

4шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

4шт.

19

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

20

S219883

TUBE,20, 3.38" L

SPARE PART LINE, hydraulic

1шт.

21

S208827

SPARE PART LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

22

S209396

VALVE

SPARE PART Check

1шт.

23

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

1шт.

24

HOSE - 1-1/4" ID x 8-1/2", Use M20628 listed below

1шт.

25

S601960

SPARE PART Oil

1шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

27

S95569

WASHER

Flat - 1/2"

16шт.

28

S77469

CLAMP

3шт.

29

131-10

NUT,1/2"-13, GB

13шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

31

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

6шт.

32

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

1шт.

33

S87573

CLAMP

1шт.

34

S79583

CLAMP

2шт.

35

S93270

SPARE PART BRACKET

1шт.

36

S92524

SPARE PART

1шт.

37

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

S88023

SPARE PART

2шт.

39

S78360

SPARE PART Spacer

2шт.

40

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

41

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

42

REF

INSTRUCTION

VALVE, 1 spool main - (For breakdown, see figure 128)

1шт.

43

S93271

SPARE PART BRACKET

1шт.

M20682

HOSE

1-1/4" ID x 10 ft. roll

1шт.
