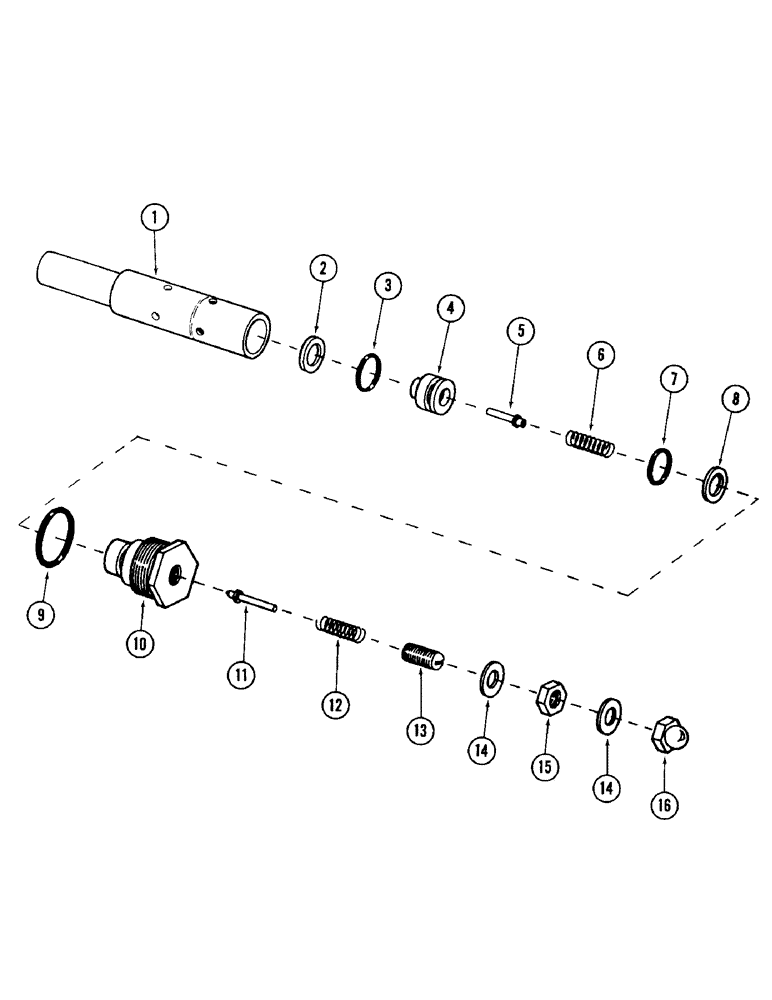

Запчасти Case 980 (158) - MAIN RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S62112

CARTRIDGE

main relief valve - set at 2500 PSI

2шт.

1

S62413

SLEEVE

1шт.

2

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

3

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

4

S62366

VALVE POPPET

POPPET

1шт.

5

S62408

PISTON

1шт.

6

S62372

SPRING

1шт.

7

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - .549" ID x .750" OD

1шт.

8

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

back up

1шт.

9

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

1шт.

10

S62414

PLUG

1шт.

11

S62323

POPPET

1шт.

12

S62359

SPRING

1шт.

13

S62325

ADJUSTMENT SCREW

adjustment

1шт.

14

D32117

COPPER WASHER

WASHER, COPPER

2шт.

15

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

1шт.

16

129-526

CROWN NUT,Low, 3/8" - 24

acorn

1шт.
