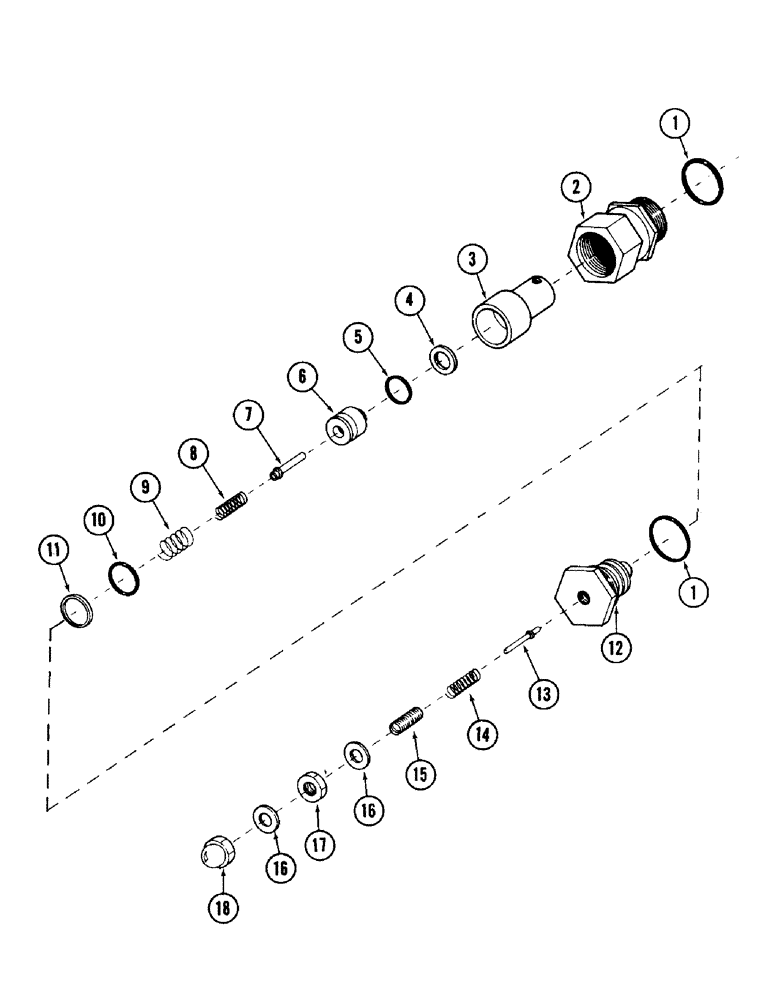

Запчасти Case 980 (156) - PORT RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S81689

VALVE

CARTRIDGE, port relief valve set at 3000 PSI

8шт.

1

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

2

S62302

CAP

1шт.

3

S62303

POPPET

1шт.

4

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back-up

1шт.

5

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD

1шт.

6

S62366

VALVE POPPET

POPPET

1шт.

7

S62324

PISTON

1шт.

8

S62326

SPRING

1шт.

9

S62368

SPRING

1шт.

10

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING - .734" ID x 1.000" OD

1шт.

11

S84155

BACK-UP RING,76mm ID x 0.45mm Width

back up

1шт.

12

D62304

PLUG

1шт.

13

S62323

POPPET

1шт.

14

S62359

SPRING

1шт.

15

S62325

ADJUSTMENT SCREW

adjustment

1шт.

16

D32117

COPPER WASHER

WASHER, COPPER

2шт.

17

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

1шт.

18

129-526

CROWN NUT,Low, 3/8" - 24

acorn

1шт.

N9092

KIT

repair, for S81689 cartridge

1шт.
