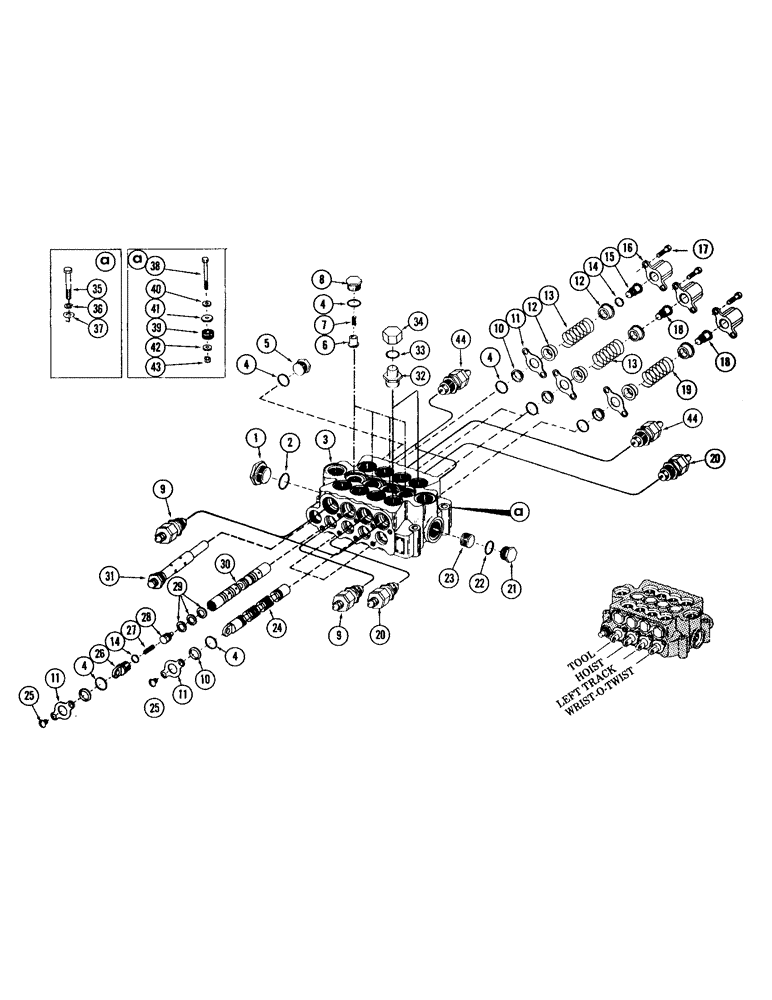

Запчасти Case 980 (150) - 4-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506210

SPARE PART 4 spool main control (Outside) - (Used on units without leveler)

1шт.

S506208

SPARE PART 4 spool main control (Outside) - (Used on units with leveler)

1шт.

1

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1.250" OD

13шт.

5

S13707

PLUG

1шт.

6

S13716

VALVE POPPET

4шт.

7

S13715

SPRING

4шт.

8

S13714

PLUG

4шт.

9

REF

INSTRUCTION

CARTRIDGE, relief valve - set at 3000 PSI (For breakdown, see figure 156)

4шт.

10

S62092

WIPER

8шт.

11

S13829

PLATE

Seal

8шт.

12

S62288

SEAT

Spring

8шт.

13

S62269

SPRING

3шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(.818" OD)

2шт.

15

S62290

BOLT

Special

1шт.

16

S62278

CAP

Plunger

4шт.

17

61-616

HEX SOC SCREW,3/8"-16 x 1"

8шт.

18

S62292

BOLT

Special

3шт.

19

S81915

VALVE SPRING

1шт.

20

REF

INSTRUCTION

CARTRIDGE, relief valve - set for 2250 PSI - (For breakdown, see figure 154)

2шт.

21

273916

PLUG,Hex, 1-5/16" - 12 ORB

(Used only with valve S - 506210)

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

1шт.

23

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

(Used only with valve S - 506208)

1шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

25

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

Machine - 3/8"-16 NC x 1/2"

8шт.

26

S62289

END

Plunger

1шт.

27

S62189

SPRING

1шт.

28

S62291

VALVE POPPET

1шт.

29

S7886

BACK-UP RING

3шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

31

REF

INSTRUCTION

CARTRIDGE, main relief valve - set at 2500 PSI - (For breakdown see figure 158)

1шт.

32

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

2шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

34

218-335

CAP,37 Degree, 1 1/16"-12

Female

2шт.

35

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

(Used on units with S/N 6203000 thru 6203568)

3шт.

36

92-8

LOCK WASHER,1/2"

(Used on units with S/N 6203000 thru 620368)

3шт.

37

95-7

WASHER,7/16"

Flat - 1/2" - (Used on units with S/N 6203000 thru 6203568)

3шт.

38

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

(Used on units with S/N 6203569 and after)

3шт.

39

S49527

MOUNTING PARTS

Lord - (Used on units with S/N 6203569 and after)

3шт.

40

95-7

WASHER,7/16"

Flat - 1/2" - (Used on units with S/N 6203569 and after)

3шт.

40

95-7

WASHER,7/16"

Flat - 1/2" - (Used on units with S/N 6203569 and after)

3шт.

41

S98895

WASHER

Flat - (Used on units with S/N 6203569 and after)

3шт.

42

92-8

LOCK WASHER,1/2"

(Used on units with S/N 6203569 and after)

3шт.

43

131-10

NUT,1/2"-13, GB

(Used on units with S/N 6203569 and after)

3шт.

44

S239214

VALVE

CARTRIDGE, port relief set at 3000 PSI

2шт.
