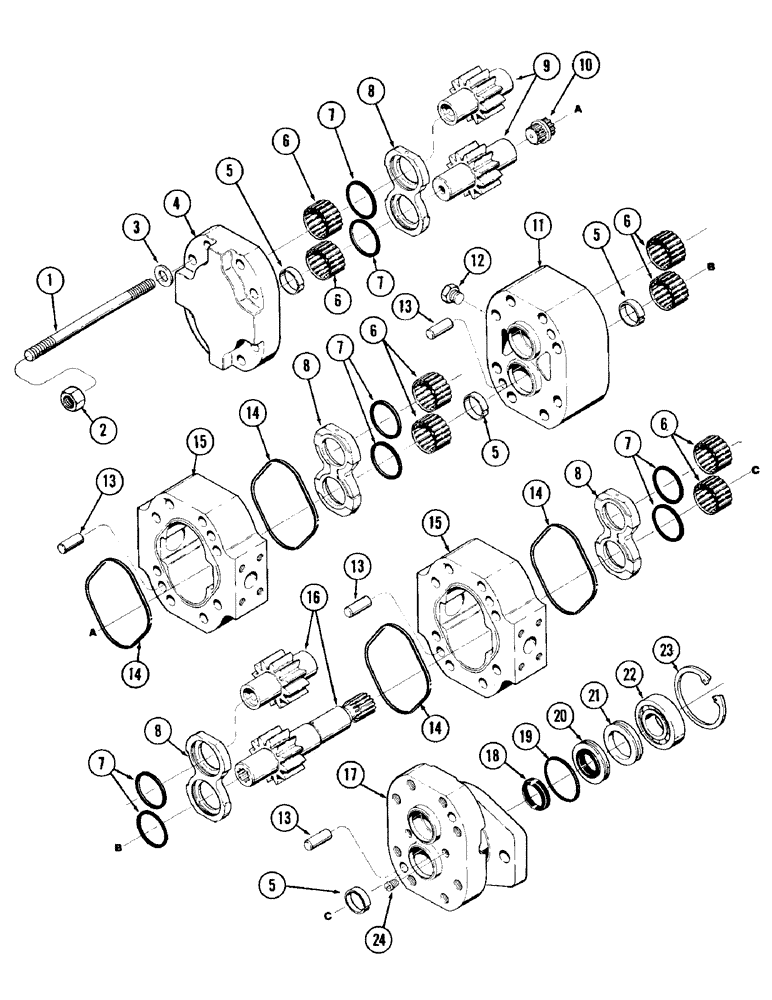

Запчасти Case 980 (149C) - MAIN HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

S615522

PUMP

- hydraulic - (Supersedes S502120 & S513121)

1шт.

1

S82801

STUD

8шт.

2

L32112

NUT

8шт.

3

D31957

WASHER

8шт.

4

S114851

COVER - port end

1шт.

5

S82765

SEALING RING

- ring

4шт.

6

A16793

NEEDLE BEARING

BEARING - roller

8шт.

7

S117091

SEAL - teflon

8шт.

8

S117090

PLATE - thrust

4шт.

9

S82800

DRIVE GEAR SET - (Matched set of 2)

1шт.

10

S88763

SHAFT - connecting

1шт.

11

S114854

CARRIER - bearing

1шт.

12

S7879

PLUG

- pipe - 1/4" NPT

1шт.

13

S114853

DOWEL

PIN - dowel

4шт.

14

S82795

GASKET

4шт.

15

S114852

HOUSING - gear

2шт.

16

S82797

GEAR

AND SHAFT SET (Matched set of 2)

1шт.

17

S114849

COVER - shaft end

1шт.

18

S82765

SEALING RING

- ring

1шт.

19

S5739

O-RING

1шт.

20

A16796

SEAL

- oil

1шт.

21

W14025

RETAINER

- seal

1шт.

22

S82767

BEARING

- ball

1шт.

23

49477

RING, SNAP

3.156", Int, #315

1шт.

24

L32320

PLUG

1шт.
