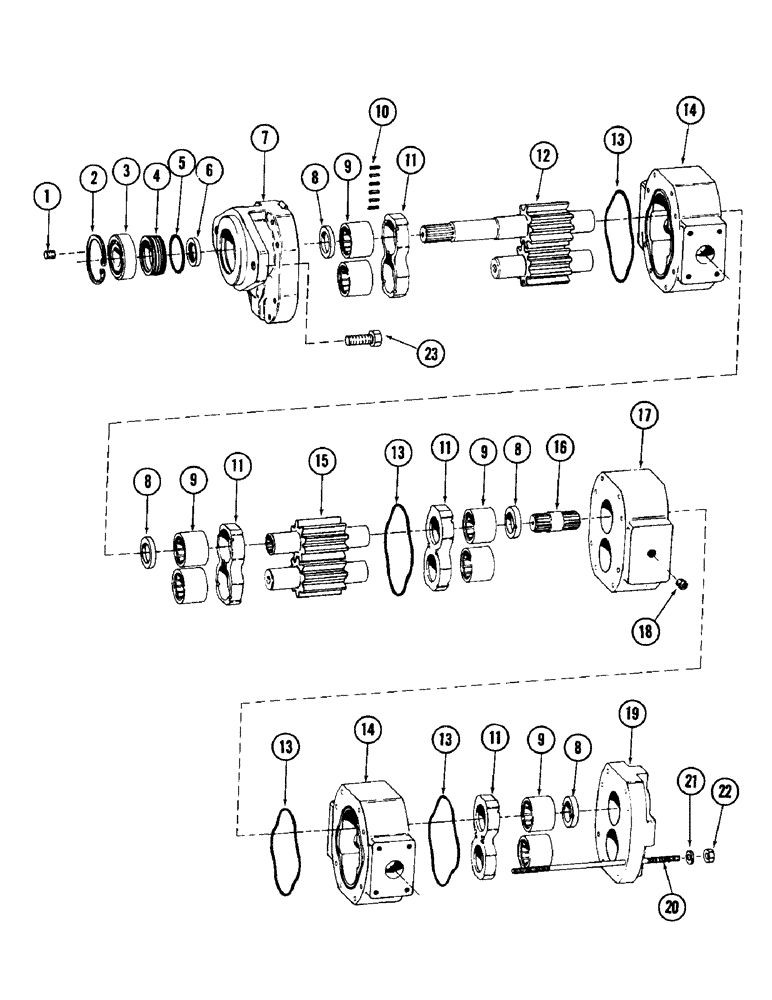

Запчасти Case 980 (148) - MAIN HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

PUMP, hydraulic - (For complete replacement of S502120, order S615522 on figure 149C)

1шт.

1

L32320

PLUG

SCREW, set - 7/16" - 20 NF x 3/8"

1шт.

2

S82724

RING

snap

1шт.

3

S82767

BEARING

1шт.

4

W14025

RETAINER

seal

1шт.

5

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

"O" RING - 2.612" ID x 2.812" OD

1шт.

6

A16796

SEAL

lip

1шт.

7

W14024

FLANGE

COVER, shaft end

1шт.

8

S82765

SEALING RING

shaft

4шт.

9

A16793

NEEDLE BEARING

BEARING, roller

8шт.

10

S82794

SEAL

pocket - 6" long (Bulk) -, Serial Range: cut-length

1шт.

11

S82770

PLATE

thrust

4шт.

12

S82797

GEAR

set

1шт.

13

S82795

GASKET

4шт.

14

S82764

HOUSING

2шт.

15

S82800

GEAR, set

1шт.

16

S82799

SHAFT

1шт.

17

S82798

CARRIER, bearing

1шт.

18

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

19

W14027

COVER

port end

1шт.

20

S82201

STUD

- 5/8" - 11 NC

8шт.

21

D31957

WASHER

flat - 5/8"

8шт.

22

86625068

NUT,5/8"-11, G8

- 5/8" - 11 NC

8шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.
