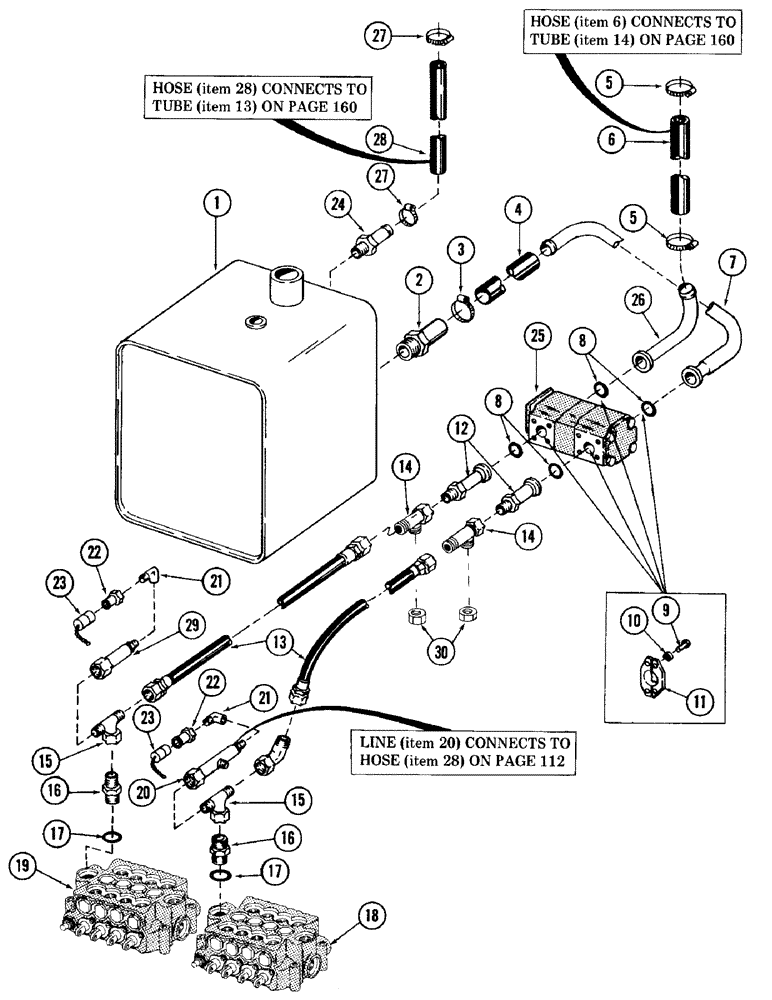

Запчасти Case 980 (146) - RESERVOIR TO PUMP (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (For breakdown, see figure 144)

1шт.

2

217-163

ADAPTER

Hose

1шт.

3

S85430

CLAMP

Hose

2шт.

4

HOSE - 2" ID x 19", Use M20695 listed below

1шт.

5

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

Hose

2шт.

6

HOSE - 1-1/2" ID x 18", Use M20694 listed below

1шт.

7

S227910

TUBE ASSY.,1.5" OD

LINE, hydraulic

1шт.

8

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

1.750" OD

4шт.

9

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

16шт.

10

92-7

LOCK WASHER,7/16"

16шт.

11

A12301

CLAMP,Half

CLAMP, split

8шт.

12

S220517

TUBE ASSY.,1.25" OD x 2" L

LINE, hydraulic

2шт.

13

S8628

HOSE

High pressure - 1" ID x 36" long (With 1-5/16"-12 female pressed on couplings)

2шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

2шт.

15

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

2шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter

2шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(1.403" OD)

2шт.

18

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 150)

1шт.

19

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 152)

1шт.

19

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see page 152)

1шт.

20

S222106

SPARE PART LINE, hydraulic

1шт.

21

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

2шт.

22

S206607

DISC

DISCONNECT, quick

2шт.

23

S206608

CAP

Dust

2шт.

24

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

LINE, INSERT, hose

1шт.

25

REF

INSTRUCTION

PUMP, main hydraulic - (For breakdown, see figure 148)

1шт.

26

S506271

SPARE PART LINE, hydraulic 1.5" OD x 4.75, 7.88" L

1шт.

27

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

28

HOSE - 1-1/4" ID x 27" Use M20682 listed below

1шт.

29

S220520

TUBE,1" OD x 4.5" L

LINE, hydraulic

1шт.

30

218-758

CAP,37 Degree, 1 5/16"-12

Female

2шт.

31

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

2шт.

M20682

HOSE

1-1/4" ID x 10 ft. roll

1шт.

M20695

HOSE

2" ID x 60"

1шт.

M20694

SPARE PART 1-1/2" ID x 60"

1шт.
