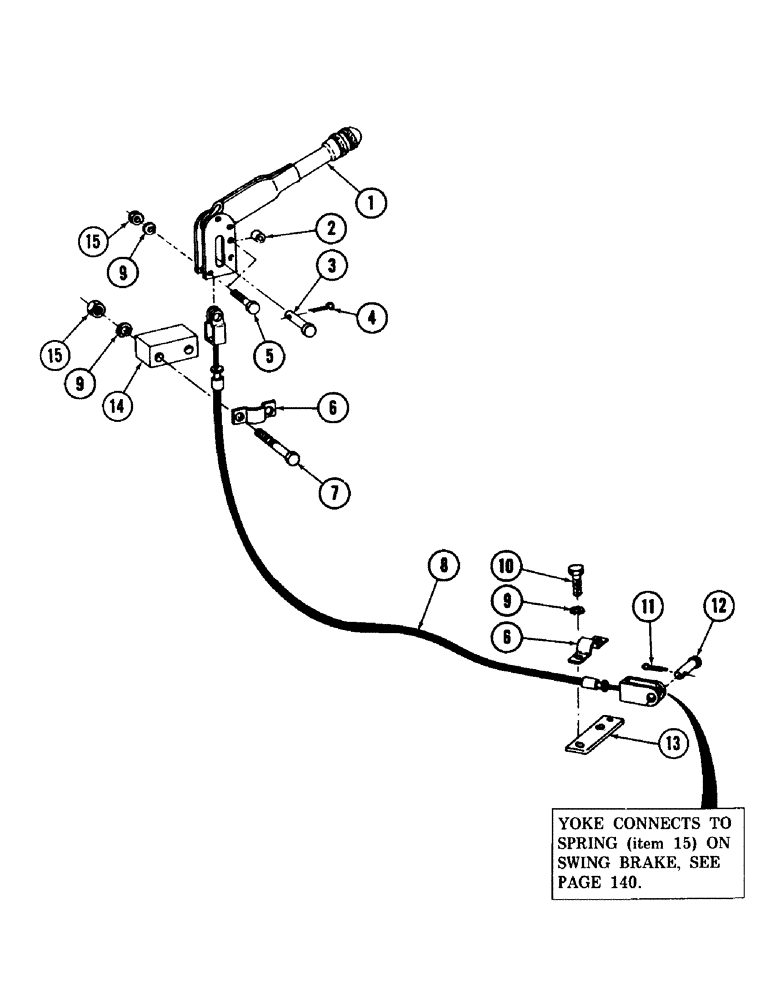

Запчасти Case 980 (142) - SWING BRAKE CONTROL (07) - HYDRAULIC SYSTEM

1

S26639

LEVER

swing brake hand

1шт.

2

S48851

SPACER

1шт.

3

S30975

PIN, clevis - 5/16" dia. x 1.250" grip length

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CPSW - 3/8" - 16 NC x 3"

2шт.

6

A55980

CLAMP

2шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

8

S33995

CABLE

brake

1шт.

9

92-6

LOCK WASHER,3/8"

6шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

12

S10715

PIN

clevis - 1/4" dia. x .651" grip length

1шт.

13

S68977

CLAMP

SPACER

1шт.

14

S64927

SPACER

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

4шт.
