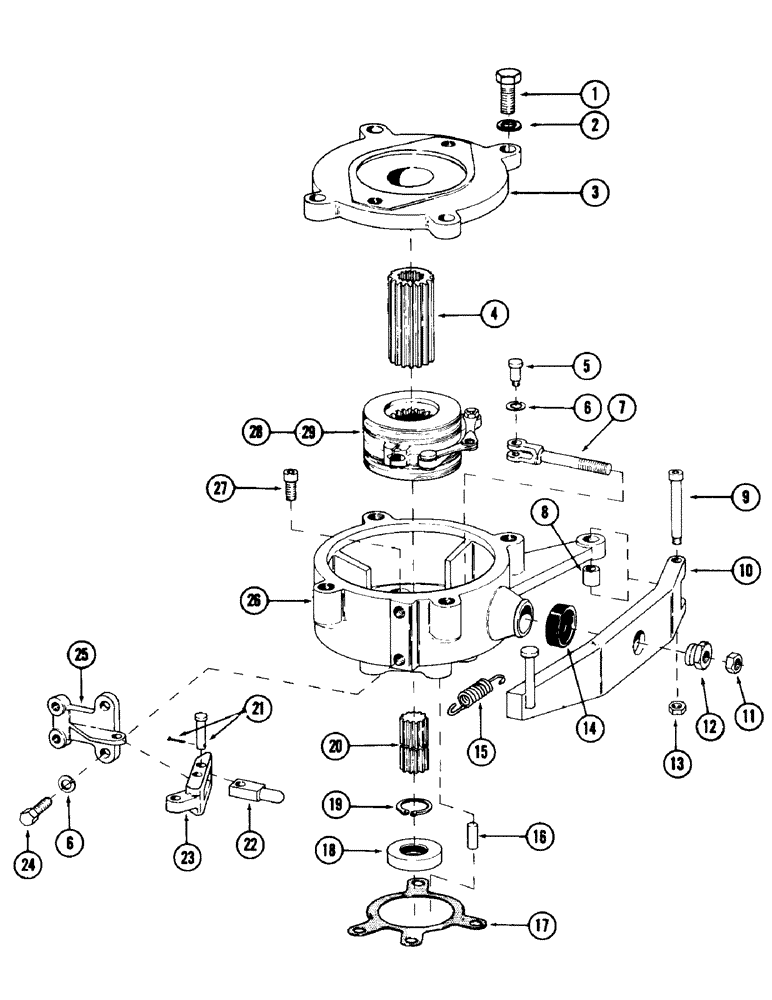

Запчасти Case 980 (140) - SWING BRAKE, (USED WITH SERIAL NUMBER 6203000 THRU 6203190) (07) - HYDRAULIC SYSTEM

S56457

BRAKE LINE

BRAKE, swing

1шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

S38006

COVER

AND FLANGE - mounting - (Mounts swing motor)

1шт.

4

S208430

COUPLING

splined

1шт.

5

S66646

BOLT,5/16" x 3/4"

shoulder

1шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

S64912

YOKE

plain

1шт.

8

S64921

BUSHING

1шт.

9

S64920

BOLT,5/16" x 2"

shoulder

1шт.

10

S203304

LEVER

brake

1шт.

11

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

1шт.

12

S64911

NUT

ball seat

1шт.

13

131-470

LOCK NUT

NUT, self locking - 5/16" x 13 NC

1шт.

14

S64913

BOOT

rubber dust

1шт.

15

S202938

SPRING

brake lever return

1шт.

16

S64915

DOWEL

1шт.

17

S203309

GASKET

1шт.

18

S64311

OIL SEAL

oil

1шт.

19

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

20

S203305

GEAR SHAFT

STUD, splined

1шт.

21

S10717

PIN

clevis - 1/4" x 1.101" grip length

2шт.

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

22

S64910

PLUNGER

cable

1шт.

23

S203959

LEVER

cable

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

S203957

BRACKET

cable mounting

1шт.

26

S53226

HOUSING

brake

1шт.

27

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

CPSW - 3/8" - 16 NC x 1-1/8"

3шт.

28

S207618

BRAKE

1шт.

29

S81615

GASKET

DISC, brake

2шт.
