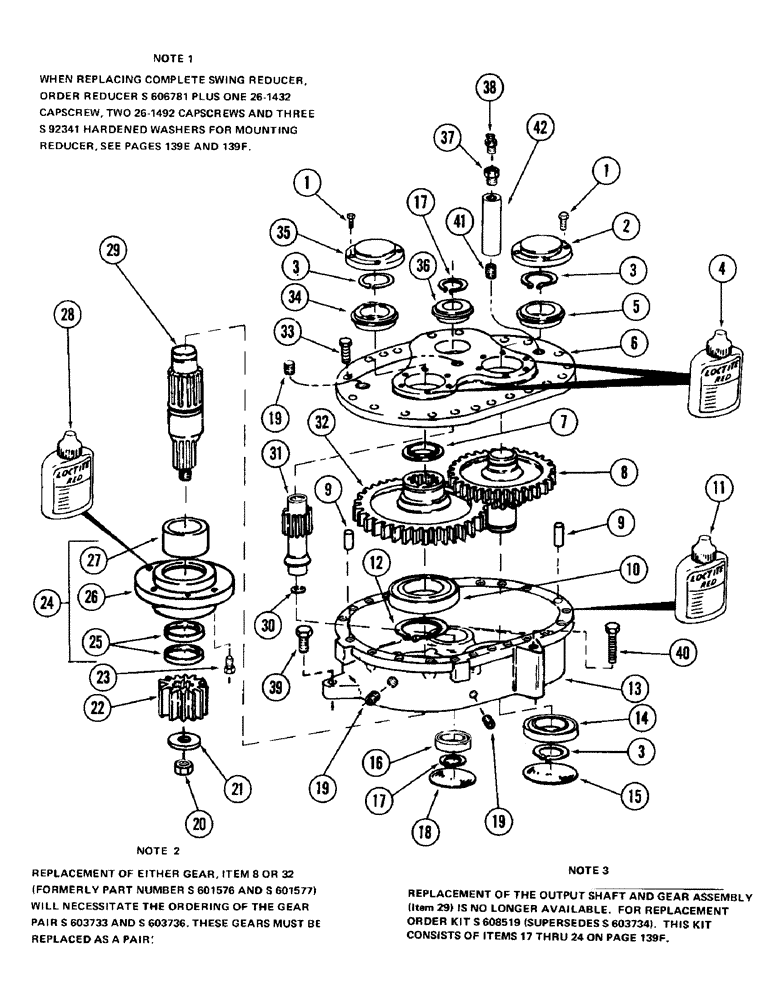

Запчасти Case 980 (138) - SWING REDUCER, USED WITH SERIAL NUMBER 6203000 THRU 6203190 (07) - HYDRAULIC SYSTEM

REDUCER, swing - (See note 1)

1шт.

1

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

CPSW - 5/16" - 18 NC x 1"

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

4

S96077

SEAL

- 10 cc bottle - (Red) - (Substitutes must not be used) - (Replaces bearing cap gasket)

1шт.

5

G13606

BALL BEARING

BEARING, ball

1шт.

Ref #5 - Replaced by S86268 06/07/96

1шт.

6

S503551

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster - (See note 2)

1шт.

9

S64319

CALIPER

DOWEL - 3/8" dia.

2шт.

10

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

11

S96077

SEAL

- 10 cc bottle - (Red) - (Sutstitutes must not be used) - (Replaces cover gasket)

1шт.

12

A31227

SNAP RING,#275, Ext

Ring, Snap, #275, Ext

1шт.

13

S55373

CASE, gear

1шт.

14

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

15

41-58

PLUG,Exp, 3 3/4"

expansion

1шт.

Ref #14 - Replaced by S98375 06/07/96

1шт.

16

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

17

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

18

41-48

PLUG,Exp, 3"

expansion

1шт.

19

221-1843

PLUG

pipe - 3/8" NPT - (Socket head)

5шт.

20

S64448

NUT

self locking

1шт.

21

S83676

SPACER

1шт.

22

S502648

PINION

output - 10 tooth

1шт.

23

113-2410

SCREW

CPSW - 1/2" NC x 1-3/4" (Nylok) - (Special DMC)

6шт.

24

S59406

HOUSING

1шт.

25

S206136

OIL SEAL

oil

2шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

27

S72921

BUSHING

1шт.

28

S96077

SEAL

- 10 cc bottle - (Red) - (Substitutes must not be used) - (Replaces reducer support gasket)

1шт.

29

SHAFT, output - (See note 3)

1шт.

30

41-1015

PLUG,Cup, 15/16"

expansion

1шт.

31

S37176

PINION

AND SHAFT, input

1шт.

32

S603736

GEAR

drive - (See note 2)

1шт.

33

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

34

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

35

S214012

CAP

bearing

1шт.

36

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

37

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" - 18 NPT x 1/8" - 24 NPT

1шт.

38

A12928

BREATHER

VENT, breather

1шт.

39

13-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

1шт.

40

13-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

CPSW - 7/8" - 9 NC x 5-1/2"

2шт.

41

221-1158

FITTING

NIPPLE - 3/8" - 18 NPT x 1" long

1шт.

42

S216625

TUBE,60" L

oil filler and breather

1шт.
