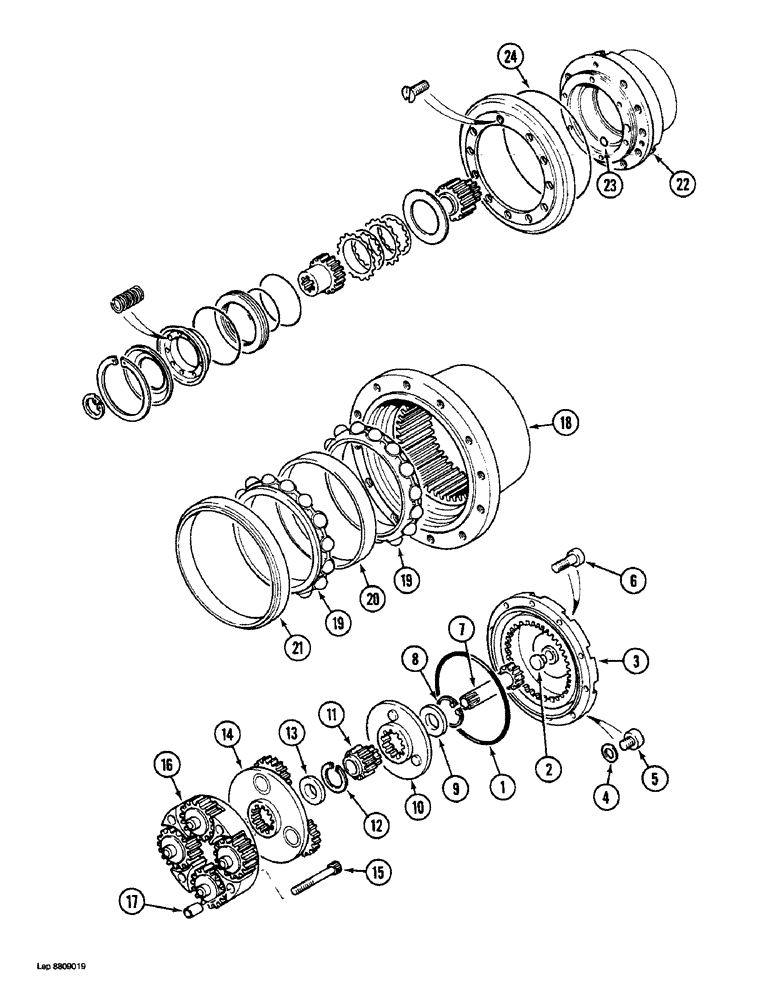

Запчасти Case 1088 (6-11A) - FINAL DRIVE TRANSMISSION, P.I.N. FROM XXXXX AND AFTER, P.I.N FROM XXXXXX AND AFTER (06) - POWER TRAIN

P2948559

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 24

1шт.

P5140366

COVER

ASSEMBLY - planetary, Includes: Ref. 1 - 5

1шт.

1

P2030430

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

- planetary cover

1шт.

2

P3545017

HOLE PLUG BUTTON

BUSHING - planetary cover

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

4

P545217

GASKET

SEAL - plug

2шт.

5

P2537489

PLUG

- planetary cover

2шт.

6

P1532917

BOLT

- hex socket, 10 mm x 25 mm, grade 12.9, (Use loctite 242, when assembling)

10шт.

7

P4339367

GEAR

PINION SHAFT - transmission

1шт.

P4839302

PINION CARRIER

FIRST STAGE CARRIER - planetary, Includes: Ref. 8 - 10

1шт.

8

P936351

RING

SNAP RING - planetary

1шт.

9

P2828599

RING

THRUST WASHER - first stage carrier

1шт.

10

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

11

P4339366

GEAR

SUN GEAR - planetary

1шт.

P4839303

PINION CARRIER

SECOND STAGE CARRIER - planetary, Includes: Ref. 12 - 14

1шт.

12

P36245

CIRCLIP

SNAP RING - planetary

1шт.

13

P2828599

RING

THRUST WASHER - sun gear

1шт.

14

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

P4339391

PINION CARRIER

THIRD STAGE CARRIER - planetary, Includes: Ref. 15

1шт.

15

P632966

SCREW

BOLT - hex socket, 20 mm x 100 mm, grade 10.9, (Use loctite 242, when assembling)

4шт.

16

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

17

P1929255

BUSHING

SPACER - bolt

4шт.

P8346270

SPARE PART SET

HUB ASSEMBLY - final drive transmission, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - transmission

1шт.

19

NSS

NOT SOLD SEPARAT

BALL BEARING - hub

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - bearing

1шт.

21

P8046027

SEAL

ASSEMBLY - brake housing

1шт.

22

P4229110

HUB

HOUSING - brake

1шт.

23

P230419

O-RING

- brake housing, small

2шт.

24

P2230456

O-RING

- brake housing, large

1шт.
