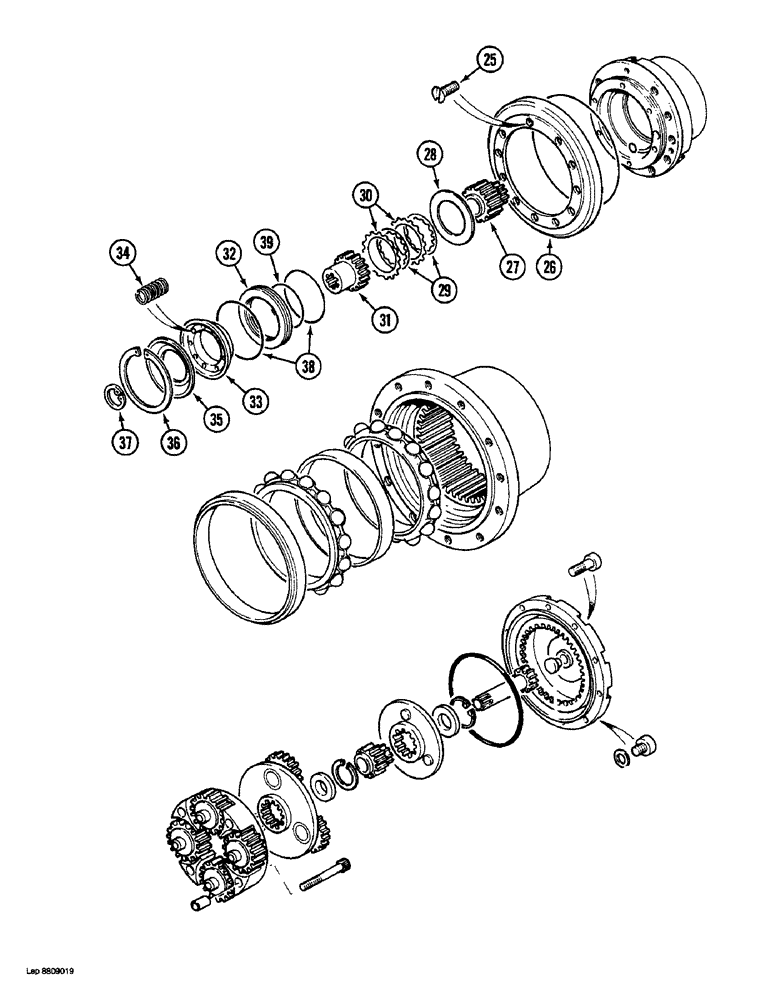

Запчасти Case 1088 (6-10) - FINAL DRIVE TRANSMISSION, P.I.N. FROM 19801 TO XXXXX, P.I.N. FROM 106901 TO XXXXX (06) - POWER TRAIN

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, continued from previous page, Includes: Ref. 25 - 39

1шт.

25

P3333004

SCREW

- special, seal cover

3шт.

26

P936358

RING

COVER - seal

1шт.

27

P4339387

GEAR

SUN GEAR - planetary

1шт.

28

P2828593

SPACER

- brake disc

1шт.

29

P3145090

DISC

- brake, metal

5шт.

30

P1245225

DISC

- brake, friction

6шт.

31

P4229111

COUPLING

ASSEMBLY - drive motor

1шт.

32

P3628824

SPACER

RETAINER - O-ring

1шт.

33

P150229

PISTON

- brake

1шт.

34

P38287

SPRING

- brake piston

9шт.

35

P1929066

DISC

CAP - brake

1шт.

36

P936356

RING, SNAP

SNAP RING - brake cap

1шт.

37

P936331

RING, SNAP

SNAP RING

1шт.

P5449683

KIT

- seal, Includes: Ref. 38 and 39

1шт.

38

P1330407

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

- piston, large

2шт.

39

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- piston, small

1шт.
