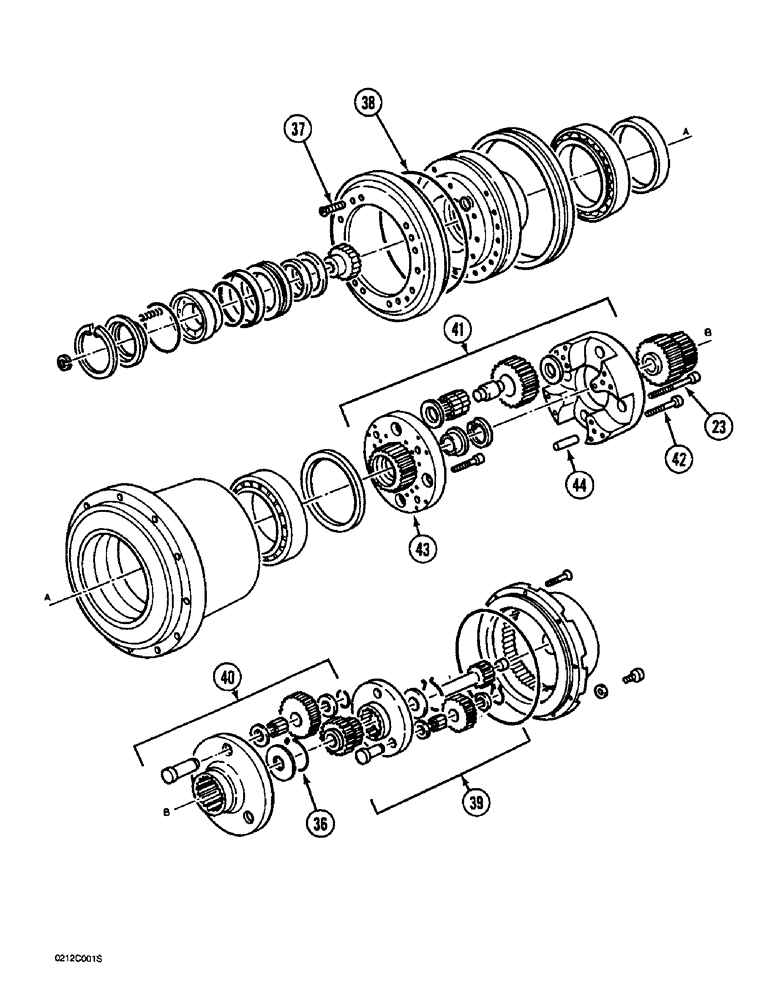

Запчасти Case 1088 (6-06) - FINAL DRIVE TRANSMISSION, P.I.N. FROM 72203 TO 72207 - EUROPE ONLY (06) - POWER TRAIN

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, (Continued from previous page), Includes: Ref. 36 - 44

1шт.

36

P36245

CIRCLIP

SNAP RING - spacer, second stage carrier

1шт.

37

P3333004

SCREW

- special, cover

3шт.

38

P2230456

O-RING

- brake housing, large

1шт.

39

P4839302

PINION CARRIER

FIRST STAGE CARRIER - planetary

1шт.

40

P4839303

PINION CARRIER

SECOND STAGE CARRIER - planetary

1шт.

41

P4339399

PINION CARRIER

THIRD STAGE CARRIER - planetary

1шт.

42

P3533021

SCREW

BOLT - hex socket, 12 mm x 70 mm, grade 12.9, (Use loctite 242, when assembling)

8шт.

43

P4839301

SHIN

COUPLING - third stage carrier

1шт.

44

P1136015

SPLIT PIN/SAFETY PIN

PIN - coupling, third stage carrier

1шт.

P5449687

KIT

- seal, Includes: Ref. 8, 9 and 29 on Figure 6-4

1шт.

P8346250

SPARE PART SET

KIT - spacer, Includes: Ref. 1 and 26 on Figure 6-4

1шт.
