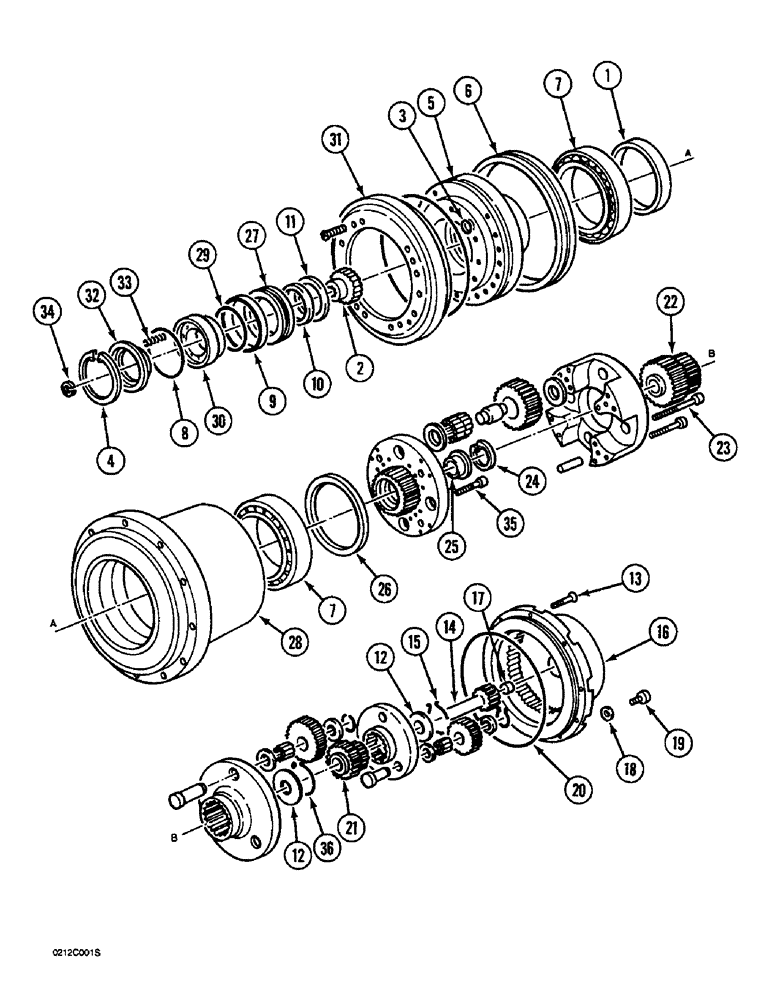

Запчасти Case 1088 (6-04) - FINAL DRIVE TRANSMISSION, P.I.N. FROM 72203 TO 72207 - EUROPE ONLY (06) - POWER TRAIN

P2648535

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 35

1шт.

1

P3628811

SPACER

- bearing

1шт.

Part of spacer kit P/N P8346250

1шт.

2

P150223

FUNNEL

COUPLING - drive motor

1шт.

3

P230419

O-RING

- brake housing, small

2шт.

4

P36262

RING, SNAP

SNAP RING - brake cap

1шт.

5

P150222

HUB

HOUSING - brake, Includes: Ref. 6

1шт.

6

P8046027

SEAL

ASSEMBLY - hub

1шт.

7

P1139860

BEARING

ROLLER BEARING - hub

2шт.

8

P1930426

O-RING

- piston

1шт.

Part of seal kit P/N P5449687

1шт.

9

P1130460

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

- retainer, large

1шт.

Part of seal kit P/N P5449687

1шт.

10

P1245225

DISC

- brake, friction

6шт.

11

P3145090

DISC

- brake, metal

5шт.

12

P2828599

RING

SPACER - stage carrier

1шт.

13

P1532917

BOLT

- hex socket, 10 mm x 25 mm, grade 12.9, (Use loctite 242, when assembling)

10шт.

14

P4339367

GEAR

PINION SHAFT - transmission

1шт.

15

P936351

RING

SNAP RING - spacer, first stage carrier

1шт.

P5140366

COVER

ASSEMBLY - planetary, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

17

P3545017

HOLE PLUG BUTTON

BUSHING - planetary cover

1шт.

18

P545217

GASKET

SEAL - plug

2шт.

19

P2537489

PLUG

- planetary cover

2шт.

20

P2030430

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

- planetary cover

1шт.

21

P4339366

GEAR

SUN GEAR - planetary

1шт.

22

P4339365

GEAR

SUN GEAR - planetary

1шт.

23

P3533020

SCREW

BOLT - hex socket, 12 mm x 120 mm, grade 12.9, (Use loctite 242, when assembling)

4шт.

24

P936349

RING

SNAP RING - sun gear

1шт.

25

P2828598

RING

SPACER - third stage carrier

1шт.

26

P3628812

SPACER

- bearing

1шт.

Part of spacer kit P/N P8346250

1шт.

27

P2728957

SPACER

RETAINER - O-ring

1шт.

28

P5140337

HOUSING

HUB - transmission

1шт.

29

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- retainer, small

1шт.

Part of seal kit P/N P5449687

1шт.

30

P1929059

PISTON

- brake

1шт.

31

P7646220

FLANGE

COVER - brake housing

1шт.

32

P1929060

STOP

CAP - brake piston

1шт.

33

P38287

SPRING

- brake piston

12шт.

34

P936331

RING, SNAP

SNAP RING

1шт.

35

P3533019

SCREW

BOLT - hex socket, 12 mm x 60 mm, grade 10.9, (Use loctite 242, when assembling)

8шт.
