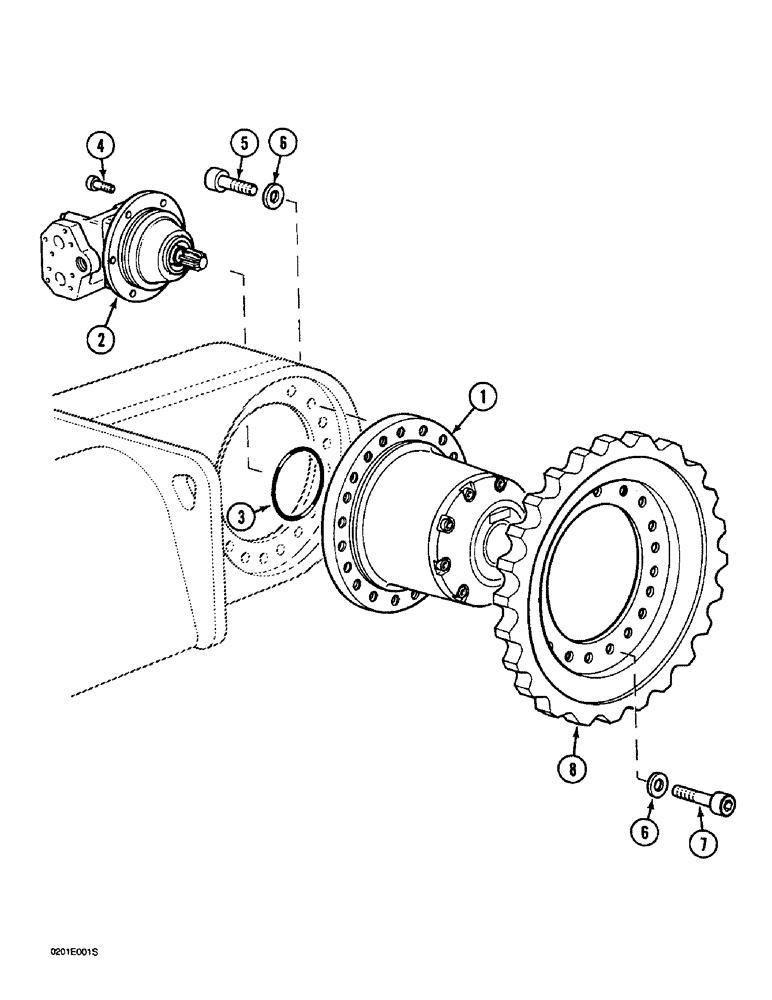

Запчасти Case 1088 (6-02) - HYDRAULIC MOTOR TO FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

1

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, (See Figure 6-4), Serial Range: 72203-72207

2шт.

1

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, (See Figure 6-8), Start Serial: 19801

2шт.

1

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, (See Figure 6-8), Start Serial: 106901

2шт.

2

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - track drive, (See Figure 7-16)

2шт.

3

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- drive, Serial Range: motor-transmission

2шт.

4

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

12шт.

5

P732986

SCREW

BOLT - hex socket, 20 mm x 75 mm, grade 10.9

32шт.

6

P4328747

WASHER

SPACER - bolt, 14 mm thick

64шт.

7

P632962

SCREW

BOLT - hex socket, 20 mm x 60 mm, grade 10.9

32шт.

8

P1942377

DRIVE SPROCKET

SPROCKET - track drive

2шт.
