Запчасти Case 1088 (4-50) - BOOM CYLINDER LAMP (04) - ELECTRICAL SYSTEMS

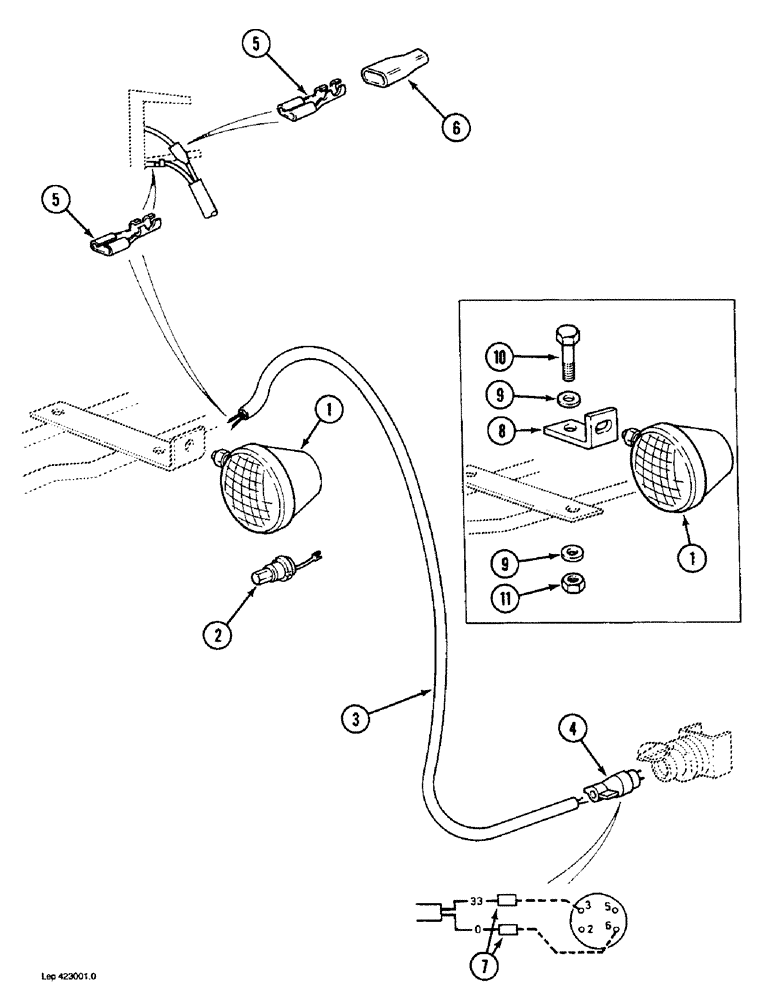

Схема запчастей Case 1088 - (4-50) - BOOM CYLINDER LAMP (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

P841727

HEADLIGHT

LAMP - boom cylinder

1шт.

2

P340501

LAMP

BULB - lamp

1шт.

3

REF

INSTRUCTION

HARNESS - boom lamp, 189" long, cut from P4565

1шт.

4

P40741

CONNECTOR,ELECTRIC

PLUG - boom lamp harness

1шт.

5

P40940

TERMINAL

CLIP - harness

2шт.

6

P41471

LIGHT FAIRING

COVER - wire clip

1шт.

7

P40935

END FITTING

TERMINAL male, Serial Range: plug-harness

2шт.

8

P4825649

SUPPORT

BRACKET - lamp mounting, (if used)

1шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick, (if used)

2шт.

10

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full thread, (if used)

1шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm, (if used)

1шт.

Выбрано товаров: 11
