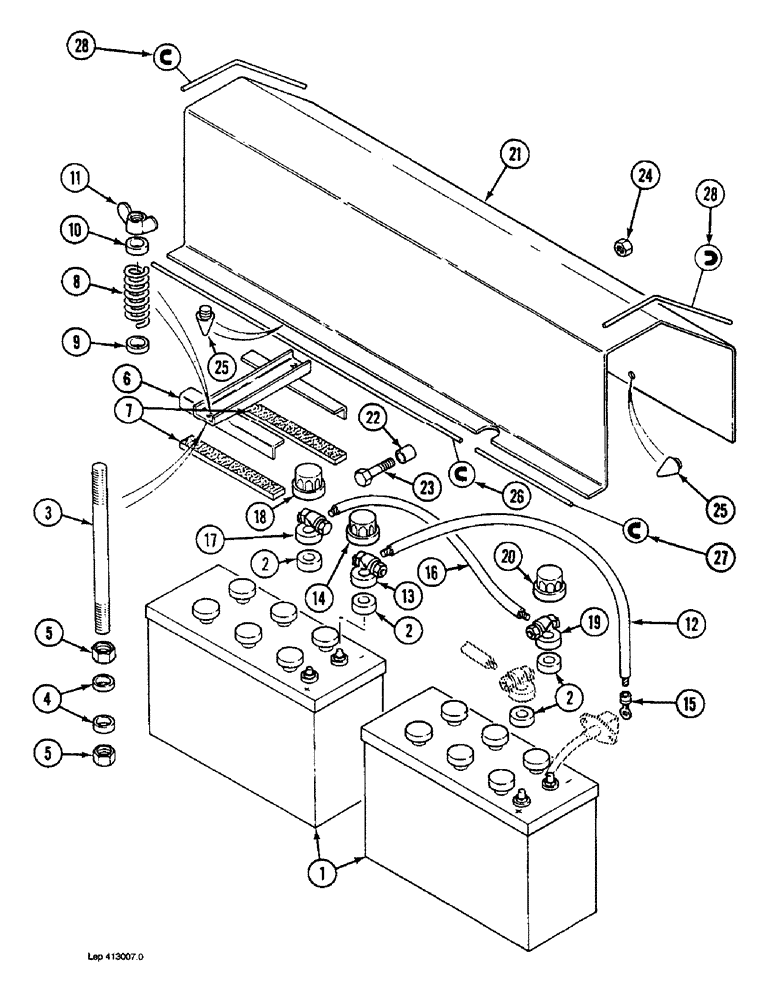

Запчасти Case 1088 (4-44) - BATTERIES, BATTERY MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
P1941801
BATTERY
- engine electrical, 12 volt
2шт.
2
P2340487
HOLE PLUG BUTTON
WASHER - treated, corrosion protector
2шт.
3
P2527769
TRUSS ROD
TIE ROD - battery retainer
4шт.
4
P3528795
WASHER
SPACER - bolt, 7 mm thick
8шт.
6
P6828240
SHIN
RETAINER - battery, Includes: Ref. 7
2шт.
7
REF
INSTRUCTION
PROTECTOR - battery edge, rubber, 8 inch long, cut from P403144
2шт.
8
P138187
COMPRESSION SPRING
SPRING - battery retainer
4шт.
9
P4328730
WASHER
SPACER - 10.25 mm x 20 mm x 25 mm
4шт.
10
P35021
WASHER
SPACER - bolt
4шт.
11
P34410
THUMB SCREW
WING NUT - tie rod
4шт.
P1652211
CABLE ASSEMBLY - battery negative post to ground, (Replaces P51672), Includes: Ref. 12 - 15
1шт.
12
REF
INSTRUCTION
CABLE - battery to ground, 53-5/8 inch long, cut from P104520
1шт.
13
P40919
TERMINAL CONNECTOR
TERMINAL - battery cable, negative
1шт.
14
P2340451
DOOR COVER
CAP - terminal protection, black
1шт.
15
P40934
TERMINAL CONNECTOR
TERMINAL - battery cable, at engine ground
1шт.
P8547245
CABLE
ASSEMBLY - jumper, battery to battery, Includes: Ref. 16 - 20
1шт.
16
REF
INSTRUCTION
CABLE - jumper, battery to battery, 53-3/16 inch long, cut from P104520
1шт.
17
P40920
CLAMP
TERMINAL - battery cable, positive
1шт.
18
P2340452
DOOR COVER
CAP - terminal protection, red
1шт.
19
P40919
TERMINAL CONNECTOR
TERMINAL - battery cable, negative
1шт.
20
P2340451
DOOR COVER
CAP - terminal protection, black
1шт.
21
P7428204
PROTECTOR
COVER - batteries protection
1шт.
22
P41470
STOP
WASHER - rubber
2шт.
23
P1332925
SCREW
BOLT - hex, 8 mm x 22 mm
2шт.
24
P134596
SAFETY NUT
NUT - hex, self-locking, 8 mm
2шт.
25
P41434
STOP
PLUG - cover, rubber
5шт.
26
REF
INSTRUCTION
SEAL - cover, 28-3/4" long, cut from P303101, if used
1шт.
27
REF
INSTRUCTION
SEAL - cover, 9-1/2" long, cut from P303101, if used
1шт.
28
REF
INSTRUCTION
SEAL - cover, 8-3/4" long, cut from P303101, if used
2шт.
Выбрано товаров: 30
