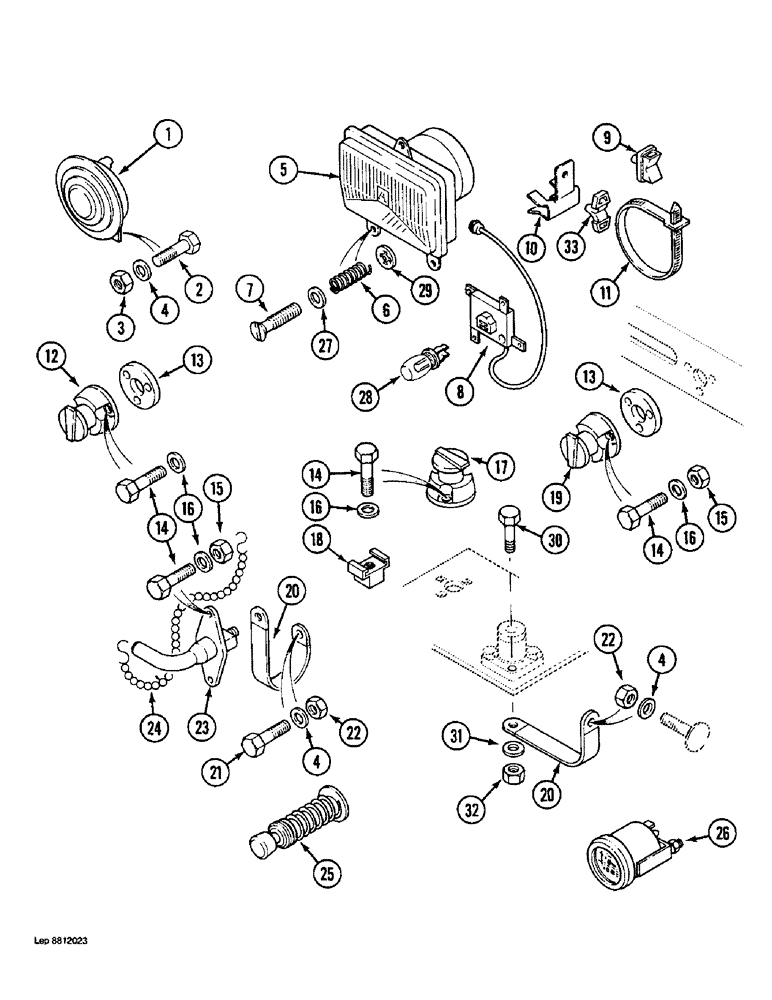

Запчасти Case 1088 (4-42) - TURNTABLE ELECTRICAL COMPONENTS, P.I.N. FROM XXXXX AND AFTER P.I.N. FROM 106901 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P4143205

BUZZER

HORN - electrical, turntable, (Replaces P841746)

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

1шт.

3

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

4

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

5

P841726

HEADLIGHT

LAMP ASSEMBLY - work, at turntable, Includes: Ref. 6 - 8

2шт.

6

P1038258

SPRING

- lamp

3шт.

7

P3533051

SCREW

- special, lamp

3шт.

8

P841775

CONNECTION,ELECTRIC

CONNECTOR - lamp

1шт.

9

P3036926

BASE

RETAINER - harness strap

1шт.

10

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

10

P2036903

CLASP

CLIP - retainer, 5/16" - 1/2" range

1шт.

11

P336923

CLAMP

TIE STRAP - harness, 4-5/8" long

1шт.

11

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

1шт.

12

P40740

PEDESTAL

SOCKET - harness, boom lamp

1шт.

13

P7546095

SEAL

-, Serial Range: socket-frame

2шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

14шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

16

P3528799

WASHER

SPACER - bolt, 4 mm thick

12шт.

17

P40745

PEDESTAL

SOCKET - cab harness

1шт.

18

P1634573

NUT

RETAINER - bolt, sleeve type, 6 mm

3шт.

19

P1340721

PEDESTAL

SOCKET - electrical

1шт.

20

P41824

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch and cab

2шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

22

P34113

NUT

- hex, 8 mm

1шт.

23

P641221

IGNITION SWITCH

SWITCH - electrical, master disconnect, (Order P2141263)

1шт.

24

Q2631352

CHAIN (CE)

CHAIN - battery disconnect, (Order P2631352)

1шт.

25

P1343242

CIGAR LIGHTER

- electric

1шт.

26

P2141660

METER

HOURMETER - electric

2шт.

27

P34804

WASHER

- flat, 5 mm

6шт.

28

P140555

LAMP

BULB - lamp, white, if used

2шт.

28

P140556

LAMP

BULB - lamp, yellow, if used

2шт.

29

P26708

SHAFT LOCK

RETAINER - lamp screw

2шт.

30

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm, full threaded

1шт.

31

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

32

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

33

P2036939

CLASP

RETAINER - tie strap

1шт.
