Запчасти Case 1088 (4-30) - CAB HEATER, KYSOR IF USED (04) - ELECTRICAL SYSTEMS

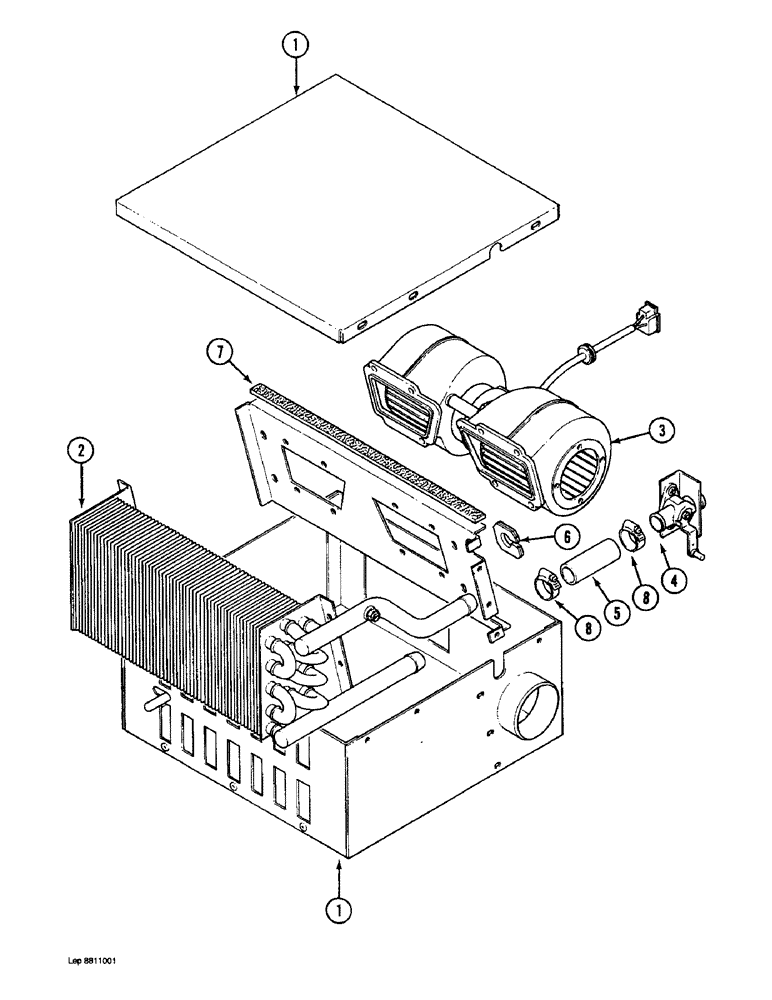

Схема запчастей Case 1088 - (4-30) - CAB HEATER, KYSOR IF USED (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

P1941806

HEATER ASSY.

HEATER - cab, (Order P2341862, see Figure 4-33A), Includes: Ref. 1 - 8

1шт.

For P1941806 vendor p/n 34.0000.5971193

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

P3743259

RADIATOR

CORE - heater

1шт.

3

P1241853

TURBINE

BLOWER ASSEMBLY - air cab

1шт.

4

P837862

COCK

VALVE - heater control, (See T.I.N. 3191)

1шт.

5

P7331903

LARGE HOSE

HOSE - heater core

1шт.

6

P9346027

SEAL

- housing

2шт.

7

P9346026

SEAL

-, Serial Range: core-blower

2шт.

8

P3036994

CLAMP

- heater core hose

2шт.

Выбрано товаров: 10
