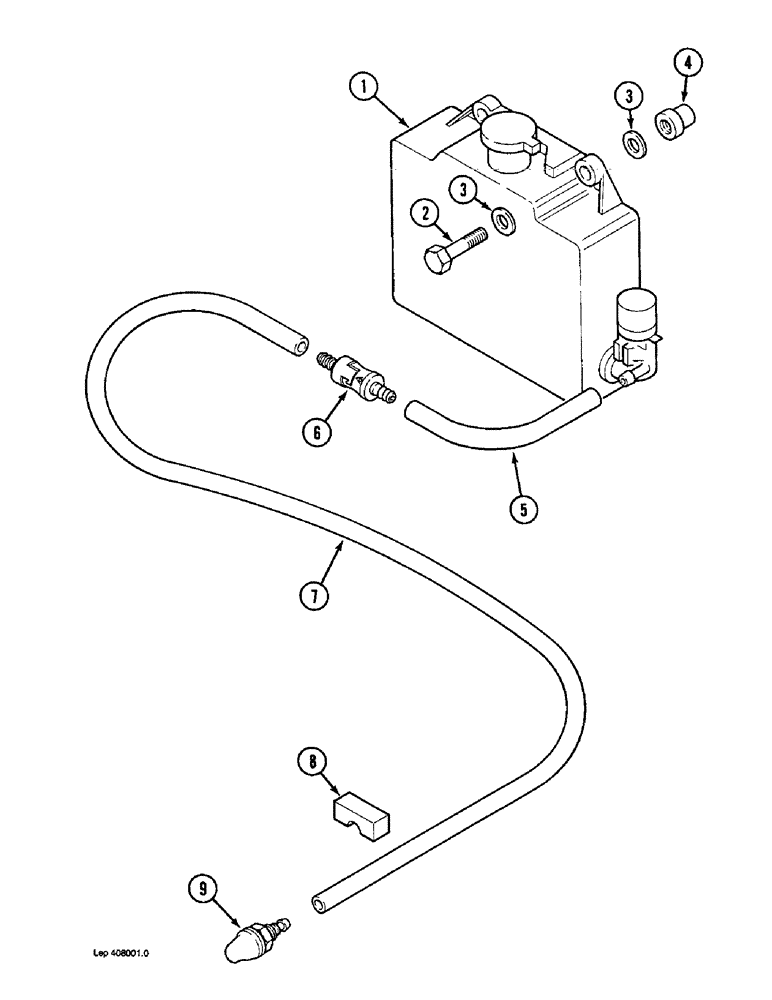

Запчасти Case 1088 (4-26) - WINDSHIELD WASHER, P.I.N. FROM XXXXX AND AFTER (04) - ELECTRICAL SYSTEMS

1

P1241880

RESERVOIR ASSY.

WINDSHIELD WASHER RESERVOIR AND MOTOR ASSEMBLY - excavator

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

3

P35002

WASHER

- flat, 6 mm

4шт.

4

P834513

NUT

RETAINER - bolt, sleeve type, 6 mm

2шт.

5

REF

INSTRUCTION

HOSE - at reservoir, 150 mm long, cut from P1103643

1шт.

6

P4441476

FITTING

CONNECTOR-QUICK -, Serial Range: hose-nozzle

1шт.

7

REF

INSTRUCTION

HOSE - windshield washer, to nozzle, 4000 mm long, cut from P1103643

1шт.

8

P1241413

CLIP,ELECTRICAL

CLIP - washer, Serial Range: hose-cab

2шт.

9

P4143207

JET

NOZZLE - windshield washer

1шт.
