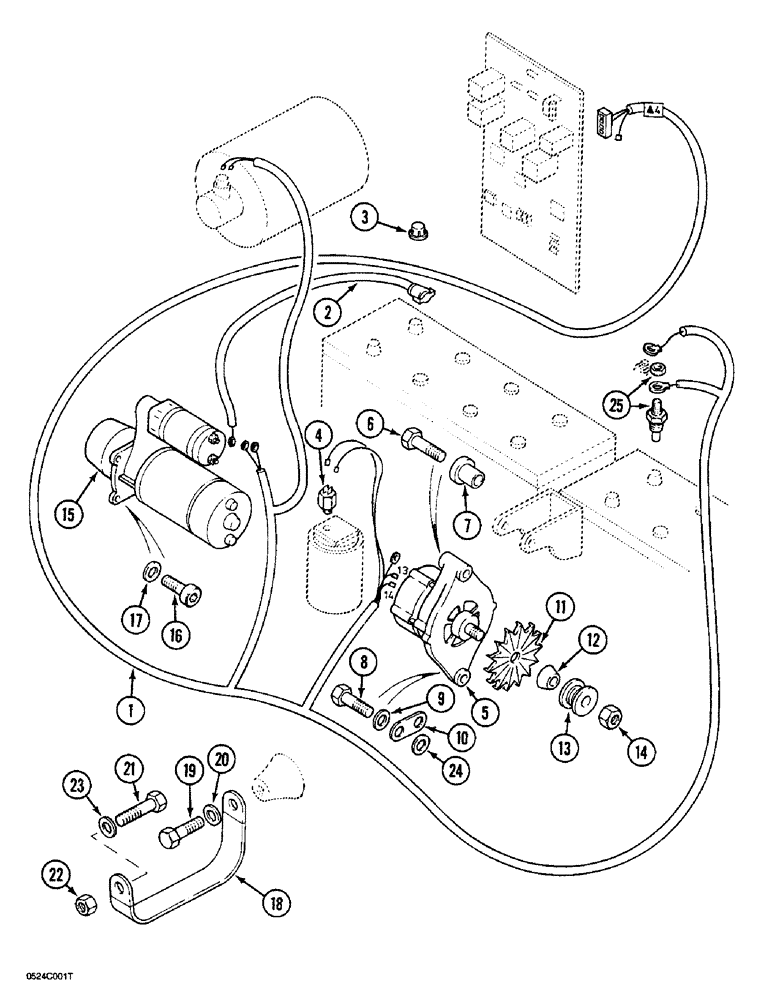

Запчасти Case 1088 (4-14) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

P1352261

HARNESS

ASSEMBLY - engine wiring, (Replaces P9847276)

1шт.

2

P9547284

CABLE

ASSEMBLY - positive battery terminal to starter, Includes: Ref. 3

1шт.

3

P2340452

DOOR COVER

CAP - terminal protector, red

1шт.

4

P1241879

ELECTRO/HYD CONTACT

SENDER - engine oil pressure

1шт.

5

REF

INSTRUCTION

ALTERNATOR - engine electrical, (Parts list Figure 4-2)

1шт.

6

P33824

SCREW

BOLT - hex, 10 mm x 100 mm

1шт.

7

P2728884

BUSHING

- alternator mounting bolt

1шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

9

P35002

WASHER

- lock, 8 mm

1шт.

10

P4424124

SUPPORT

BRACKET - alternator mounting

1шт.

11

221425R1

FAN

- alternator

1шт.

12

J903333

RETAINER

- pulley

1шт.

When ordering J903333 or J903596, you will get 1-retainer J908563 and 1-pulley J908560

1шт.

13

J903586

GROOVED PULLEY

PULLEY - drive

1шт.

When ordering J903333 or J903596, you will get 1-retainer J908563 and 1-pulley J908560

1шт.

14

P34116

NUT

- hex, 16 mm

1шт.

15

REF

INSTRUCTION

STARTER - engine electrical, (Parts list Figure 4-4)

1шт.

16

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

17

P34611

WASHER

- flat, 10 mm

3шт.

18

P1047299

NEG BATTERY CABLE

CABLE - engine, Serial Range: ground-frame

1шт.

19

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

1шт.

20

P3528793

WASHER

SPACER - bolt, 8 mm thick

1шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

22

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

23

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

24

P3145329

WASHER

SHIM - alternator

1шт.

25

P3743277

GAUGE

SENDER - engine temperature, (Replaces P41547)

1шт.
