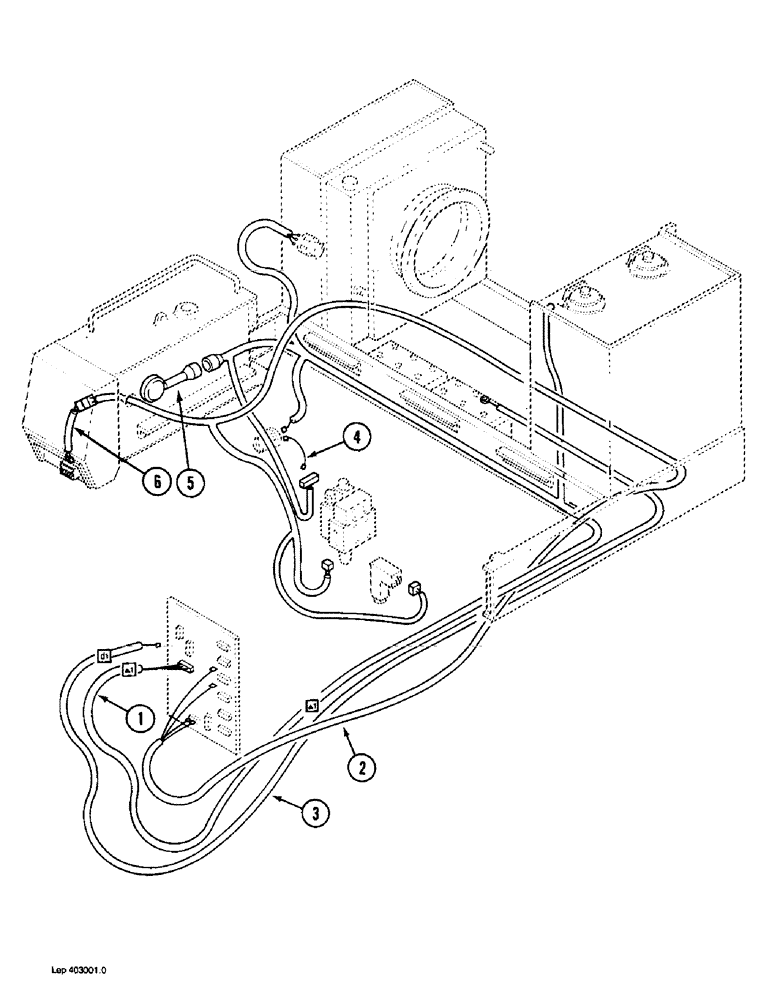

Запчасти Case 1088 (4-12) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 20174 AND AFTER, P.I.N. FROM 106901 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P1352248

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

1

P1352249

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

2

P1352257

HARNESS

- circuit board to sender, solenoid valve and front work lamp

1шт.

2

P1352256

HARNESS

- circuit board to sender, solenoid valve and front work lamp

1шт.

3

P9547283

CABLE

HARNESS - electrical at circuit board

1шт.

4

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

5

P1352244

HARNESS

- electrical fuel gauge to main harness

1шт.

5

P1352245

HARNESS

- electrical fuel gauge to main harness

1шт.

6

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.
