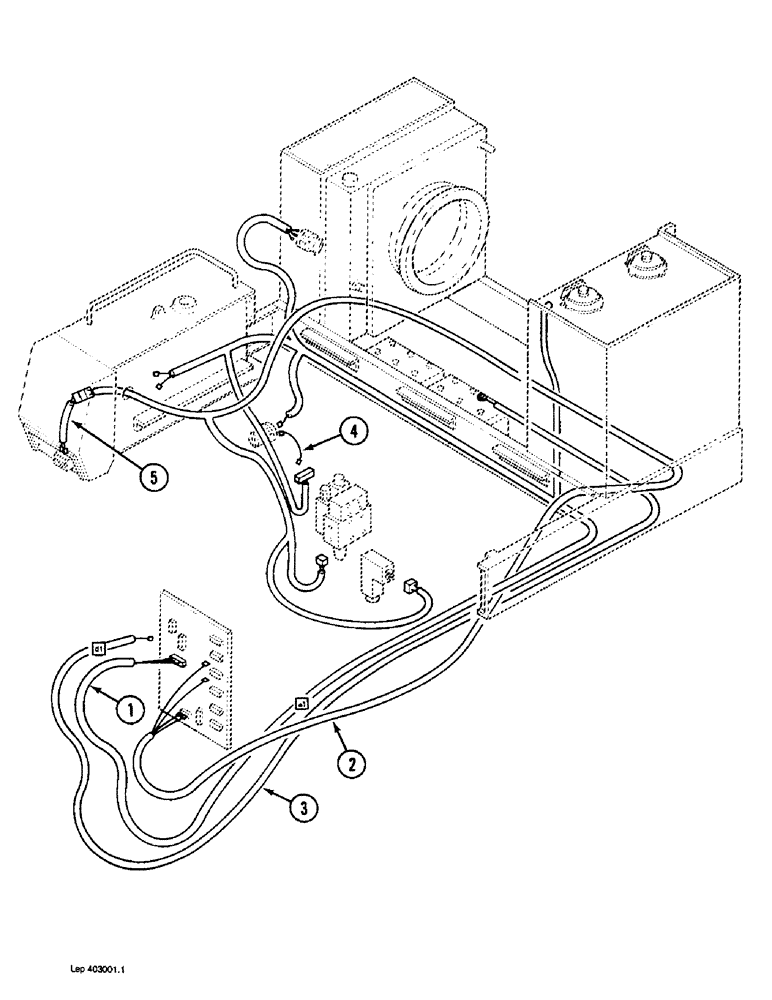

Запчасти Case 1088 (4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM XXXXX TO 20173 (04) - ELECTRICAL SYSTEMS

1

P1352240

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve, (Order P1352262)

1шт.

2

P1352256

HARNESS

- circuit board to sender, solenoid valve and front work lamp

1шт.

3

P9547283

CABLE

HARNESS - electrical at circuit board

1шт.

4

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

5

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.
