Запчасти Case 1088 (4-08) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 19801 TO XXXXX (04) - ELECTRICAL SYSTEMS

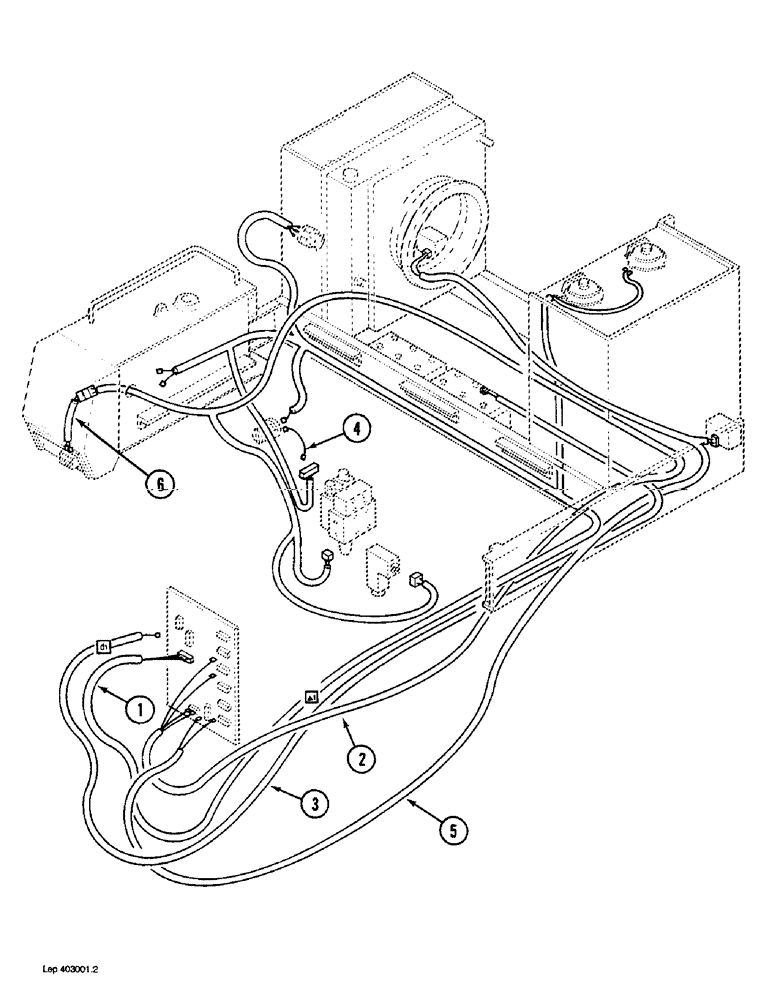

Схема запчастей Case 1088 - (4-08) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 19801 TO XXXXX (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

P352231

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve (Order P1352262 and P2537448)

1шт.

1

P352232

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve, (Order P1352262 and P2537448)

1шт.

2

P1352206

HARNESS

- circuit board to sender, solenoid valve and front work lamp

1шт.

2

P1352207

HARNESS

- circuit board to sender, solenoid valve and front work lamp

1шт.

3

P9547283

CABLE

HARNESS - electrical at circuit board

1шт.

4

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

5

P352252

HARNESS

- circuit board to rear light

1шт.

6

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.

Выбрано товаров: 8
