Запчасти Case 1088 (4-06) - STARTER, 6T-590 ENGINE (04) - ELECTRICAL SYSTEMS

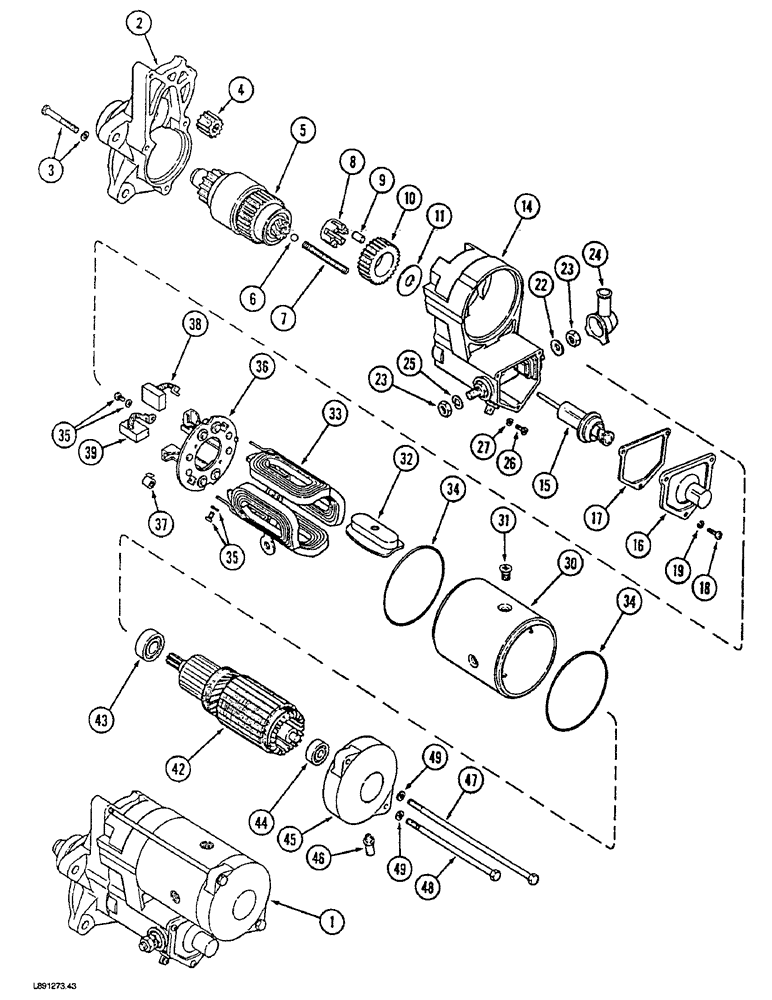

Схема запчастей Case 1088 - (4-06) - STARTER, 6T-590 ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

D129494

STARTING MOTOR

STARTER ASSEMBLY - engine (Nippondenso No. 128000-2560), Includes: Ref. 2 - 49

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN D129494

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

A49797

HOUSING

HOUSING - starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

BOLT AND WASHER ASSEMBLY - housing retaining

3шт.

4

A49809

PINION

GEAR - pinion

1шт.

5

A49802

CLUTCH

CLUTCH ASSEMBLY - starter

1шт.

6

211-10

BALL

BALL - 11/32 inch diameter

1шт.

7

A47232

SPRING

SPRING - compression

1шт.

8

A47236

RETAINER

RETAINER - roller bearing

1шт.

9

A47235

ROLLER BEARING

ROLLER - pinion bearing

5шт.

10

A49810

GEAR

GEAR - pinion idler

1шт.

11

A47234

WASHER

WASHER - thrust

1шт.

14

A49799

SWITCH

SWITCH ASSEMBLY - magnetic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retaining

3шт.

22

A10454

WAVE WASHER

WASHER - terminal

1шт.

23

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

2шт.

24

A49805

COVER

COVER - terminal

1шт.

25

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW - terminal

1шт.

27

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Terminal screw M5

1шт.

30

A49804

HOUSING

HOUSING - starter field, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOES - pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

34

A49812

SEAL

SEAL - housing

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW AND WASHER ASSEMBLY - brush retaining

4шт.

36

A49806

BRUSH HOLDER

HOLDER ASSEMBLY - brush, Includes: Ref. 37

1шт.

37

A47249

SPRING

SPRING - brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

BRUSH ASSEMBLY - starter

2шт.

39

A49808

COMMUTATOR BRUSH

BRUSH ASSEMBLY - starter

2шт.

42

A49801

ROTOR

ARMATURE ASSEMBLY - starter, Includes: Ref. 43 and 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

BEARING - armature, 15 x 35 x 11mm

1шт.

44

A47248

BALL BEARING

BEARING - armature, 10 x 30 x 9 mm

1шт.

45

A49811

COVER ASSY

FRAME - commutator end

1шт.

46

A49803

BREATHER

COVER - frame end

1шт.

47

A49813

BOLT

BOLT - through, hex, 7 x 208 mm

1шт.

48

A49814

BOLT

BOLT - through, hex, 7 x 146 mm

1шт.

49

A49815

LOCK WASHER

WASHER - through bolt

2шт.

Выбрано товаров: 44
