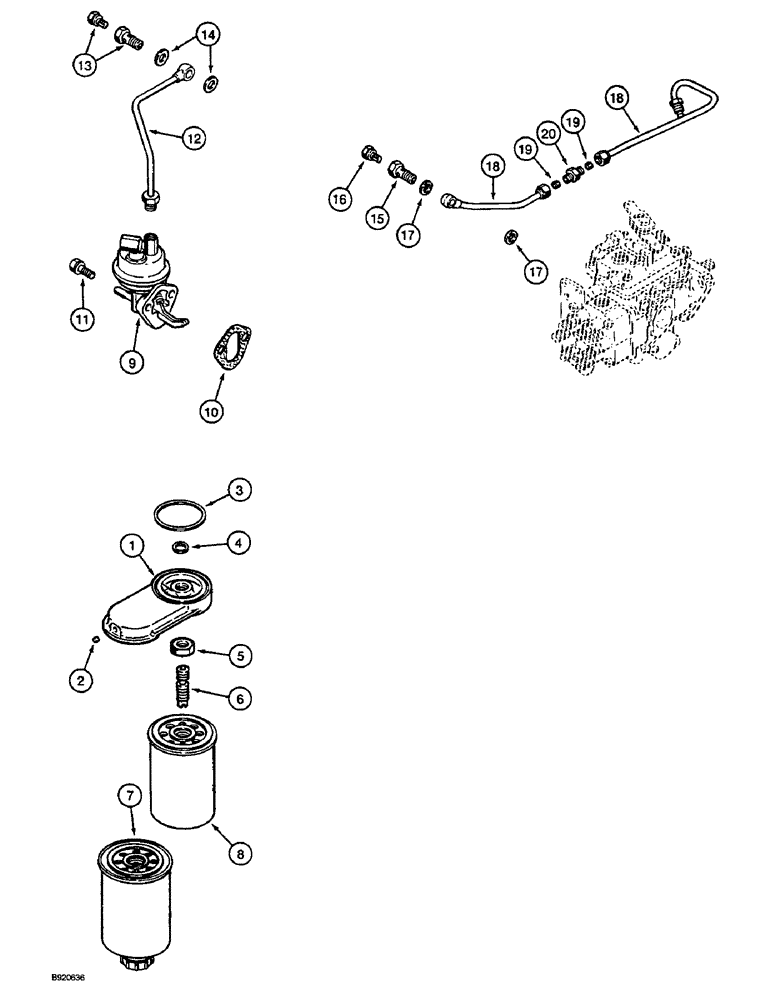

Запчасти Case 1088 (3-10) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter, (Replaces J904362 head assembly), Includes, Ref. 2

1шт.

2

A77432

PLUG

- expansion, 6.6 mm OD, (Used with J904362 head)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter head, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

KIT - fuel filter, Includes, Ref. 7 and 8

1шт.

7

J930942

SEPARATOR

FILTER - fuel, Primary, (Replaces J903410 filter)

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J904374

PUMP

- lift, fuel

1шт.

10

J914304

GASKET

- fuel lift pump

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

12

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE - fuel supply

1шт.

13

J903035

BANJO BOLT

BOLT - banjo hex, special

1шт.

14

J918191

PACKING RING

WASHER - sealing, (Replaces J903037 washer)

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes, Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.

17

J918191

PACKING RING

WASHER - sealing, (Replaces J903037 washer)

2шт.

18

J918640

FUEL TUBE

TUBE - fuel supply, (Replaces J917564 and J912783 tube assembly), Includes, Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

2шт.

20

222-4

FITTING,9/16"-24, Flex Tube

CONNECTOR - compression, 5/16 inch OD

1шт.
