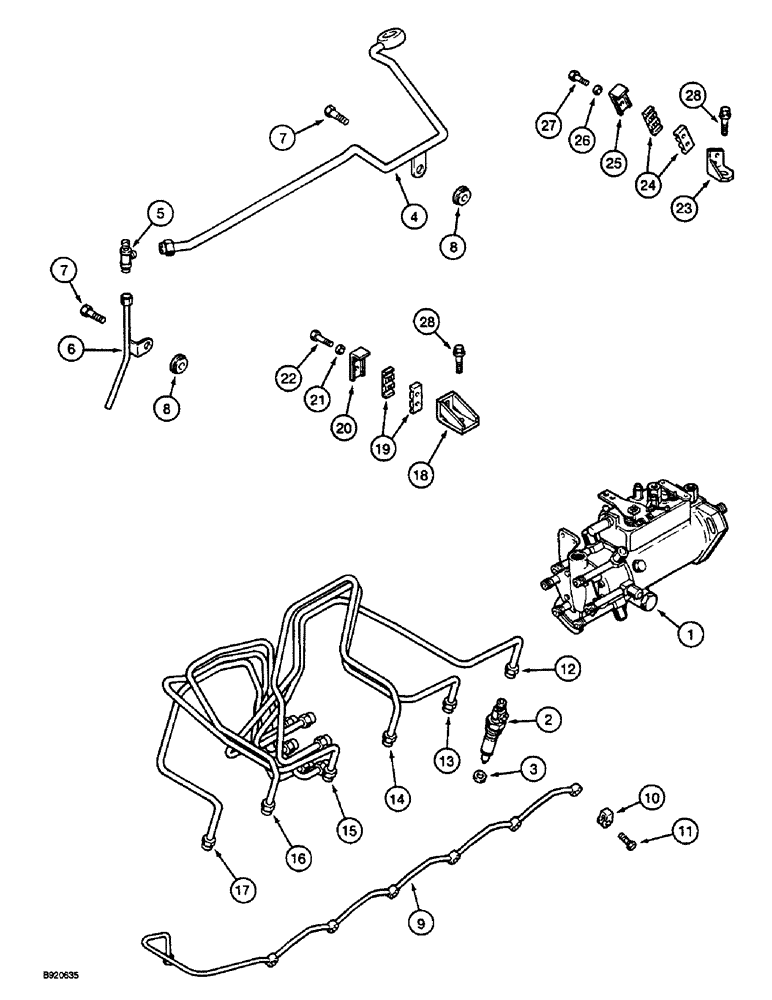

Запчасти Case 1088 (3-08) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, (See Figure 3-12 for correct assembly)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, (See Figure 3-14 for correct assembly)

6шт.

3

J900808

SEAL

- injector, 9 mm, (See Figure 3-14, Ref. 3)

6шт.

3

J906659

SEAL

- injector, 7 mm, (See Figure 3-16, Ref. 12)

6шт.

4

J905705

FUEL TUBE,4.76 mm OD

TUBE - fuel drain

1шт.

Fuel tube, bolts to tappet cover, see Figures 2-46, 2-50 or 2-53A, Ref. 21.

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard nuts and sleeves before assembly)

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

2шт.

Fuel tube, bolts to tappet cover, see Figures 2-46, 2-50 or 2-53A, Ref. 21.

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm (Replaces J900629)

2шт.

8

J900267

SEAL

- cover bolt

2шт.

9

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

10

J903380

SEAL

- connector

6шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

12

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

13

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

14

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

15

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

16

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE ASSEMBLY - fuel injector, No. 5 cylinder

1шт.

17

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE ASSEMBLY - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, (No longer available, order component parts separately), Includes, Ref. 18 - 22

2шт.

18

J917777

BRACE

BRACKET - fuel tube

1шт.

19

J917747

CLAMP

- tube retaining

1шт.

21

J903723

WASHER

- flat, 5 mm

2шт.

22

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, (No longer available, order component parts separately, Includes, Ref. 23 - 27

1шт.

23

J917778

BRACE

BRACKET - fuel tube

1шт.

24

J917747

CLAMP

- tube

2шт.

25

J904519

SUPPORT

BRACE - fuel tube retaining

1шт.

26

J903723

WASHER

- flat, 5 mm

2шт.

27

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

28

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Bracket retaining Hex Flg Hd, M8 x 1.25 x 25

3шт.
