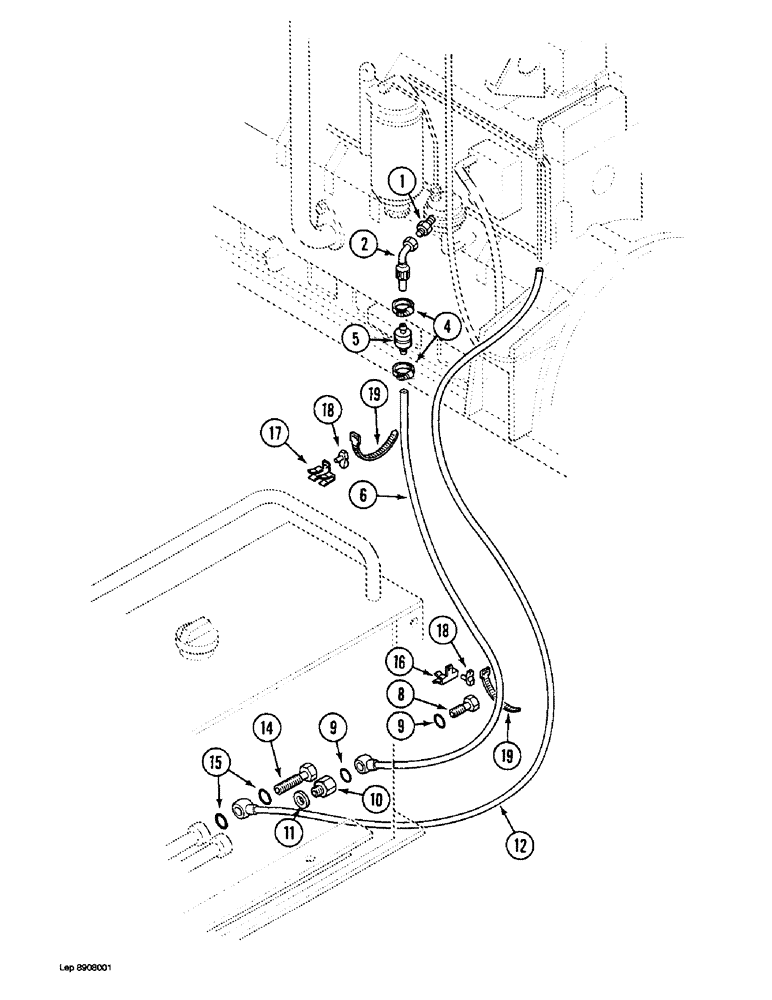

Запчасти Case 1088 (3-06) - ENGINE FUEL LINES AND FITTINGS (03) - FUEL SYSTEM

1

P2337559

FITTING

ADAPTER - straight, fuel, Serial Range: hose-engine

1шт.

2

P7331904

HOSE

- filter to engine, 7 - 15/16" long

1шт.

4

P36951

COLLAR

CLAMP - hose

2шт.

5

P1950594

FILTER, FUEL

FUEL FILTER - suction line

1шт.

6

P7331906

HOSE

- 10 mm ID, tank to filter, 70-7/8" long

1шт.

8

P730095

SCREW

BOLT - fuel hose connector

1шт.

9

P45240

WASHER, SEALING

GASKET - connector

2шт.

10

P1037321

RESTRICTOR

REDUCTION - at tank

1шт.

11

P45239

WASHER, SEALING

GASKET - reduction at tank

1шт.

12

P6631962

HOSE

- 4 mm ID 78-7/8 inch long, fuel, Serial Range: return-tank

1шт.

14

P730090

BANJO BOLT

BOLT - fuel hose connector

1шт.

15

P5346094

SEAL

GASKET - connector

2шт.

16

P2036903

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

17

P2036902

CLASP

CLIP - retainer, 5/16" - 1/4" range

1шт.

18

P2036939

CLASP

RETAINER - tie strap

1шт.

19

P51946

CLAMP

TIE STRAP - fuel hose to retainer, 10 - 1/8" long

1шт.
