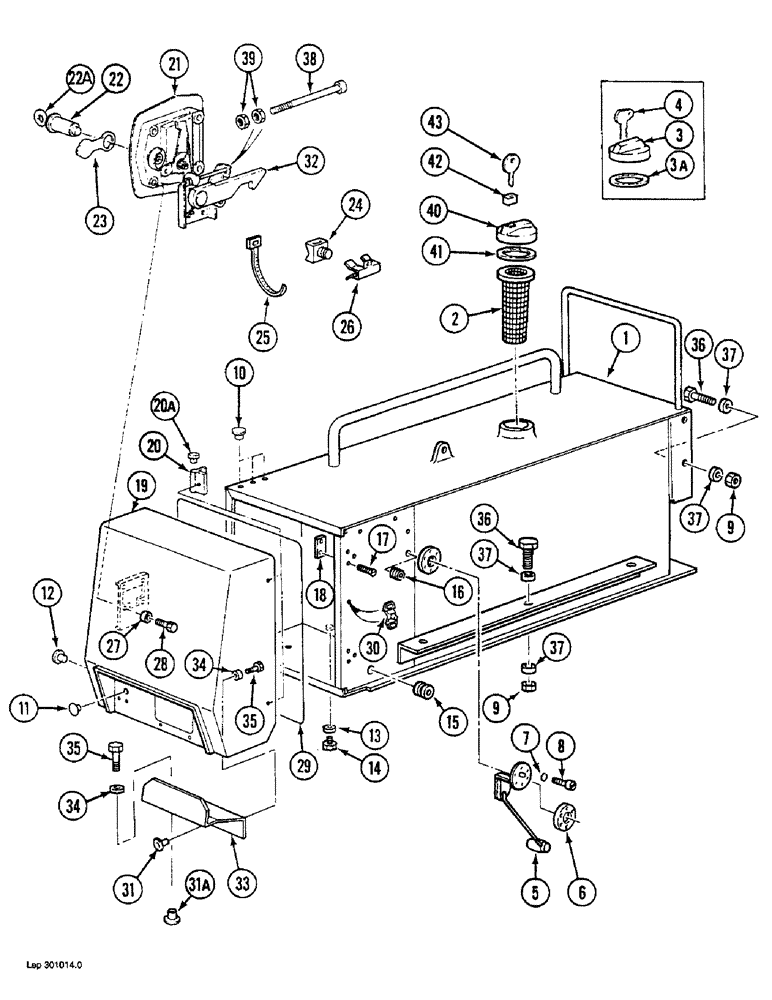

Запчасти Case 1088 (3-05A) - FUEL TANK AND STORAGE COMPARTMENT, P.I.N. FROM 20236, 20238 & AFTER, P.I.N FROM 106936 & AFTER (03) - FUEL SYSTEM

1

P2440210

FUEL TANK ASSEMBLY - diesel engine

1шт.

2

P50537

FILTER BOWL

STRAINER - fuel

1шт.

3

P3337451

FILLER CAP

CAP - filler, fuel tank, (Order P3737440 and P1652004), Includes, Ref. 3A and 4

1шт.

3a

P8846020

SEAL

- filler cap

1шт.

4

P1352009

KEY

- set of two keys

1шт.

5

P1941836

ELECTRICAL GAUGE

SENDING UNIT - electrical, fuel gauge, (Replaces P1941813), Includes, Ref. 6

1шт.

6

P8846063

SEAL

- fuel gauge

1шт.

7

P34703

WASHER

- lock, 4 mm

6шт.

8

P32530

SCREW

- slotted, 4 mm x 10 mm

6шт.

9

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

5шт.

10

P3337427

PLASTIC PLUG

PLUG - plastic, top of fuel tank

3шт.

11

P3037441

PLASTIC PLUG

PLUG - plastic, front of storage compartment

1шт.

12

P3237454

PLASTIC PLUG

PLUG - plastic, side of storage compartment

1шт.

13

P146001

WASHER, SEALING

SEAL - plug

1шт.

14

P37495

PLUG

- tank drain

1шт.

15

P141485

GROMMET

- harness, large

1шт.

16

P41477

GROMMET

- harness, small

1шт.

17

P32465

SCREW

- slotted hex, 10 mm x 25 mm

4шт.

18

P3523166

PLATE

- mounting

2шт.

19

P7828250

DOOR

ASSEMBLY - storage compartment, Includes, Ref. 20 and 20A

1шт.

20

P736667

HINGE

-, Serial Range: welded-door

2шт.

20a

P3337440

PLUG

- plastic, grease

2шт.

21

P5242788

HANDLE AND LOCK ASSEMBLY - door, Includes, Ref. 22 - 23

1шт.

REF 21 MAY BE A TYPO, NO PRINT TO CONFIRM, BUT P5242786 IS A GOOD NUMBER AND IT IS A LATCH. LISTED AS WHERE USED FOR 1088CK & 888CK.

1шт.

22

P152083

LOCK, CYLINDER

CYLINDER AND KEY - lock, Includes, Ref. 23

1шт.

22a

P1352009

KEY

- cylinder lock, set

1шт.

23

P2340499

DOOR COVER

COVER - cylinder protection

1шт.

24

PP2036939

CLASP

RETAINER - tie strap

1шт.

25

P336923

CLAMP

TIE STRAP - harness, 4-5/8 inch

1шт.

26

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

27

P35001

WASHER

- flat, 6 mm

4шт.

28

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

29

REF

INSTRUCTION

SEAL - door, 2160 mm long, cut from P303167

1шт.

30

P3036926

BASE

RETAINER - harness strap

1шт.

31

P35419

RIVET

RETAINER - bolt, sleeve type, 10 mm

3шт.

31a

P35471

RIVET

RETAINER - bolt, sleeve type, 10 mm

2шт.

32

P5242787

MECHANISM - handle and lock

1шт.

33

P3326374

HOOD

PANEL - door, inner

1шт.

34

P4328796

WASHER

SPACER - clamp bolt, 7 mm thick

3шт.

35

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

3шт.

36

P833894

SCREW

BOLT - hex, 20 mm x 60 mm

5шт.

37

P35008

WASHER

- flat, 20 mm

10шт.

38

P632920

SCREW

BOLT - hex socket, 6 mm x 80 mm

1шт.

39

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

40

P3737440

FILLER CAP

CAP - filler, fuel tank

1шт.

41

P8846020

SEAL

- filler cap

1шт.

42

P1652003

LOCK, CYLINDER

CYLINDER AND KEY - lock, Includes, Ref. 43

1шт.

43

P1652004

SET OF 2 KEYS

KEY - set of two keys

1шт.
