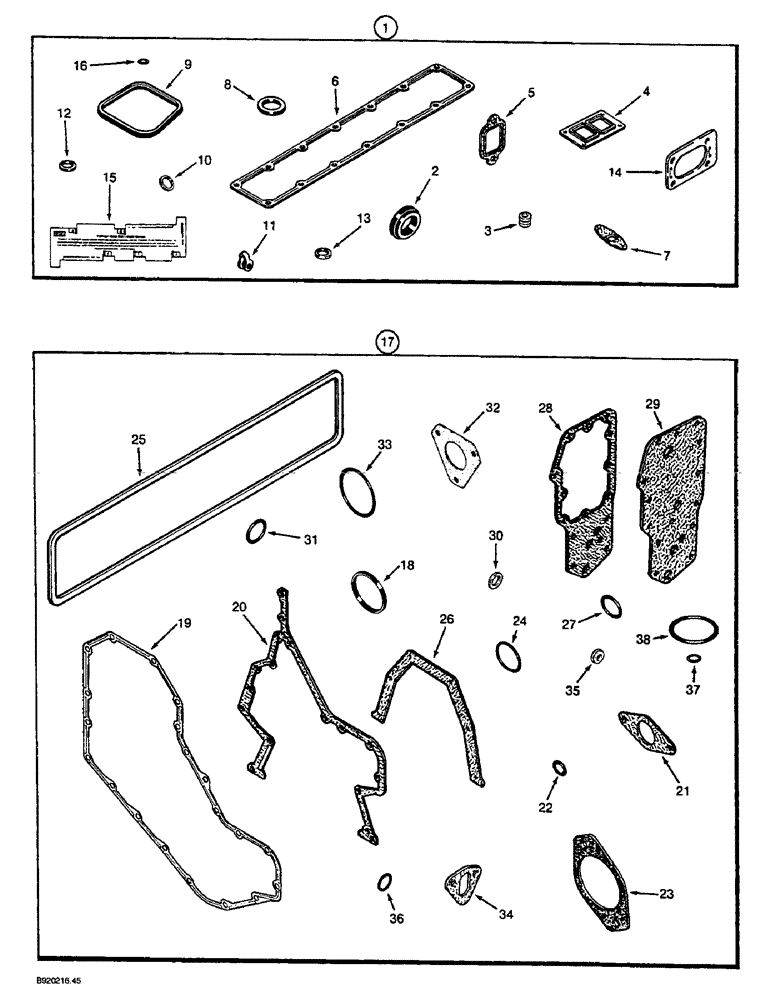

Запчасти Case 1088 (2-64) - ENGINE GASKET KITS, 6T-590 ENGINE (02) - ENGINE

1

A77793

GASKET KIT

KIT - valve grind, (Replaces A77675 valve grind kit), Includes, Ref. 2 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-40.

1шт.

2

J923331

GASKET

- thermostat housing, (Replaces J920020 gasket), valve grind

1шт.

3

J901097

SEAL

- intake and exhaust valve guides, grind

12шт.

4

J901356

GASKET,0.5mm Thk

- turbocharger to manifold, valve grind

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold, valve grind

6шт.

6

J914029

GASKET

- intake manifold, valve grind

1шт.

7

J914388

GASKET

- oil drain tube, valve grind

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, (Not used in this application), valve grind

1шт.

9

J902666

GASKET

SEAL - rocker arm cover, valve grind

6шт.

10

J900808

SEAL

- 9 mm injector tip, valve grind

6шт.

11

J903380

SEAL

- connector, valve grind

6шт.

12

J906659

SEAL

- 7 mm injector tip, valve grind

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- 7 mm injector tip, valve grind

6шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection, (Not used in this application), vavle grind

1шт.

15

J823921

GAUGE

- bolt length, cylinder head, valve grind

1шт.

16

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- rocker arm cover bolt, (Replaces J910824 O-ring), valve grind

6шт.

17

A77674

GASKET KIT

KIT - engine block, cylinder, Includes, Ref. 18 - 38

1шт.

For complete engine overhaul, order (1) each of valve grind kit, cylinder block kit, oil pan kit, figure 2-38, front and rear crankshaft seal kit, Fig. 2-56 and required cylinder head gasket, Fig. 2-40.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

- front gear cover to housing, cylinder block

1шт.

20

J916131

GASKET

- timing gear housing, cylinder block

1шт.

21

J905595

GASKET

- timing pin housing, (Not used in this application), cylinder block

1шт.

22

J913994

O-RING

- sealing, timing pin, cylinder block

1шт.

23

J919601

GASKET

- accessory drive cover plate, (Replaces J913192), cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump, cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J907617

GASKET

- tappet cover, cylinder block

1шт.

26

J914386

GASKET

- seal retainer, crankshaft, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection, cylinder block

1шт.

28

J918256

GASKET

- cooler core, oil, cylinder block

1шт.

29

J918257

GASKET

- filter head, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, oil pan, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - engine oil filter, (Not used in this application), cylinder block

1шт.

32

J914389

GASKET

- fuel pump, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder

1шт.

34

J914304

GASKET

- fuel lift pump, cylinder block

1шт.

35

J900267

SEAL

- tappet cover bolt, cylinder block

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel housing plug, cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID, cylinder block

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter stud, 70 mm ID, cylinder block

1шт.
