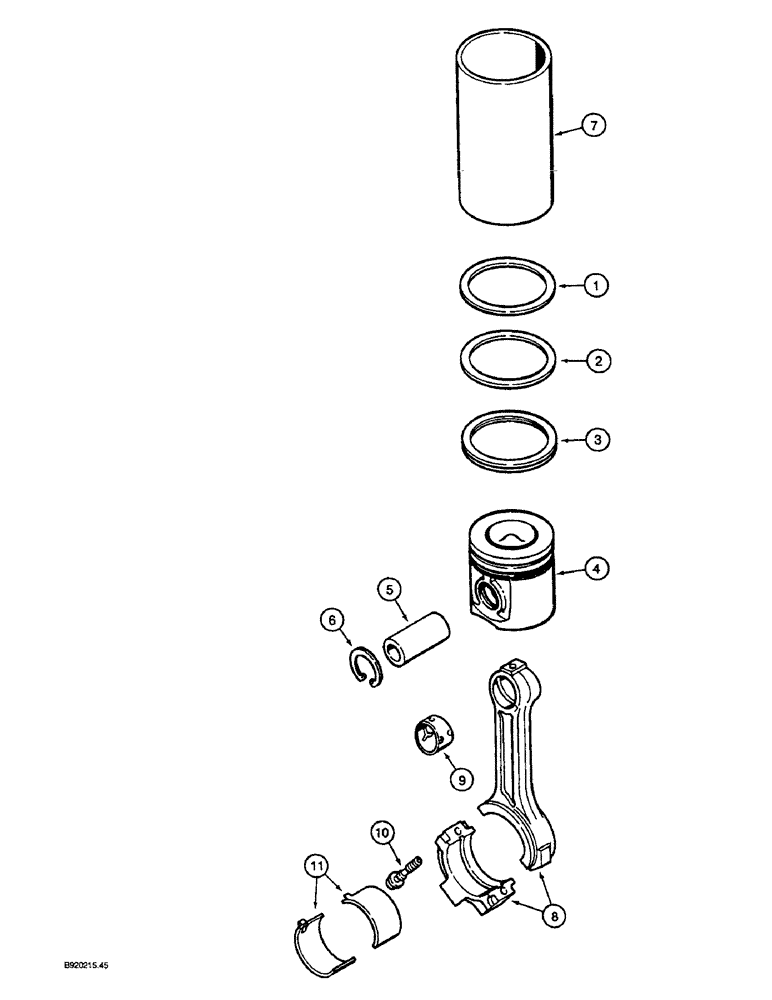

Запчасти Case 1088 (2-62) - PISTONS AND CONNECTING RODS, 6T-590 ENGINE, STANDARD PISTON (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT - piston, standard, Includes, Ref. 1 - 4

6шт.

A77727

PISTON RING SET

KIT - ring, standard, Includes, Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard, (Stamped 7163)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- retainer, pin

2шт.

A77731

PISTON & RINGS KIT

KIT - piston, 0.5 mm oversize, Includes, Ref. 1 - 4

6шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes, Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, 0.5 oversize pistion kit

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, 0.5 oversize pistion kit

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 0.5 oversize pistion kit

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize, (Stamped 8815)

1шт.

5

J901793

PISTON PIN

PIN - piston,. 0.5 oversize

1шт.

6

J901706

RING

- retainer, pin, 0.5 oversize pistion kit

2шт.

A77732

PISTON

KIT - piston, 1.0 mm oversize, Includes, Ref. 1 - 4

6шт.

A77729

PISTON RING SET

KIT - ring, 1.00 mm oversize, Includes, Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, 1.0 mm oversize pistion kit

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, 1.0 mm oversize pistion kit

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 1.0 mm oversize pistion kit

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize, (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston, 1.0 mm oversize

1шт.

6

J901706

RING

- retainer, pin, 1.0 mm oversize pistion kit

2шт.

7

J904166

SLEEVE

LINER - piston, (Used only in engine block repair), (When liner is installed, use A77730 standard piston kit)

1шт.

JR925232

ROD

ASSEMBLY - connecting, remanufactured, (North America only)

6шт.

JC925232

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rods for credit

6шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, includes both halves, (Replaces J901569 rod), Includes, Ref. 9 and 10

6шт.

84145405R

REMAN-CONNECTING ROD

1088, Reman For New P/N J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT - bearing, standard, upper and lower set

6шт.

11

A77466

BEARING SET

KIT - bearing, 0.25 mm undersize, upper and lower set

6шт.

11

A77467

BEARING LINER

KIT - bearing, 0.50 mm undersize, upper and lower set

6шт.

11

A77468

BEARING SET

KIT - bearing, 0.75 mm undersize, upper and lower set

6шт.

11

A77469

BEARING SET

KIT - bearing, 1.00 mm undersize, upper and lower set

6шт.
