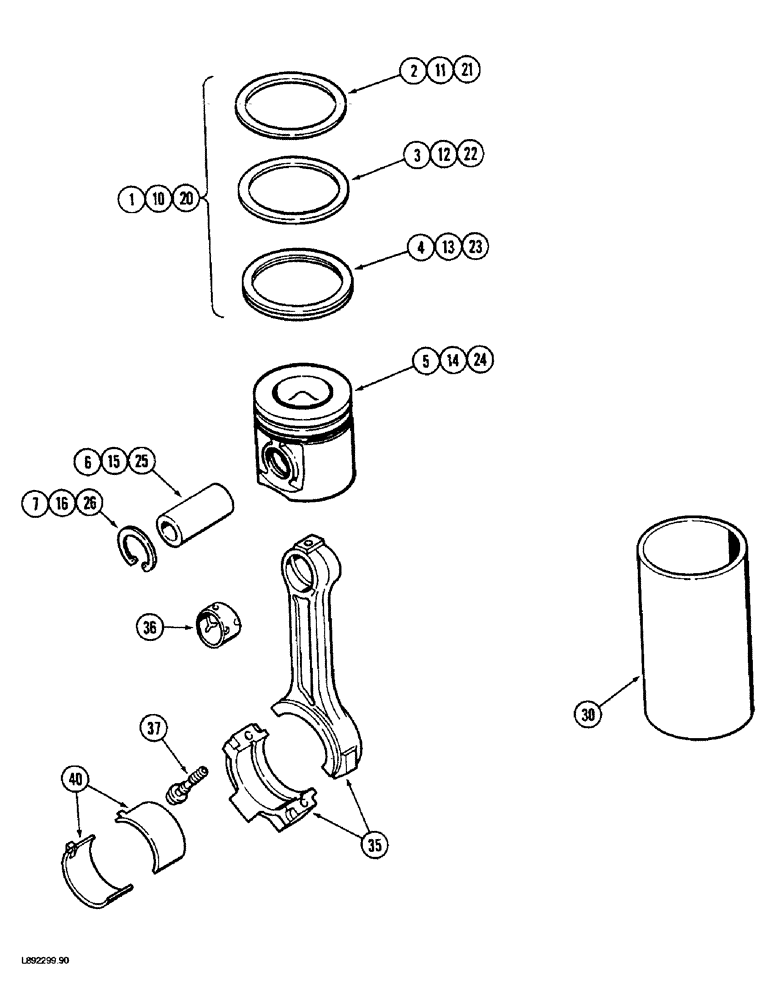

Запчасти Case 1088 (2-60) - PISTONS, 6T-590 ENGINE, STANDARD PISTON KIT (02) - ENGINE

A77419

PISTON

KIT - engine, (Standard), Includes, Ref. 1 - 5

6шт.

1

A77500

PISTON RING SET

RING KIT - piston, (Standard), Includes, Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON, cylinder, standard, (Stamped 7163)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77638

PISTON

KIT - engine (0.5 mm oversize), Includes, Ref. 10 - 14

6шт.

10

A77501

PISTON RING SET

RING KIT - engine (0.5 mm oversize), Includes, Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top, 0.5mm oversize pistion kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle, 0.5mm oversize pistion kit

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 0.5mm oversize pistion kit

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize, (Stamped 8815)

1шт.

15

J901793

PISTON PIN

PIN - piston, 0.5mm oversize

1шт.

16

J901706

RING

- retainer, pin, 0.5mm oversize

2шт.

A77637

PISTON

KIT - engine (1.0 mm oversize), Includes, Ref. 20 - 24

6шт.

20

A77502

PISTON RING SET

RING KIT - engine (1.0 mm oversize), Includes, Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top, 1.0mm oversize pistion kit

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle, 1.0mm oversize pistion kit

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom, 1.0mm oversize pistion kit

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize, (Stamped 8816)

1шт.

25

J901793

PISTON PIN

PIN - piston, 1.0mm oversize pistion kit

1шт.

26

J901706

RING

- retainer, pin, 1.0mm oversize pistion kit

2шт.

30

J904166

SLEEVE

LINER - piston, (Used only in engine block repair) (When liner is installed, use only A77419 Piston Kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes, Ref. 36 and 37

6шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rods for credit

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

35

84145405R

REMAN-CONNECTING ROD

1088, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, 11 mm x 26 mm, connecting rods

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod, upper and lower, standard, (set)

6шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod, upper and lower, 0.25 mm undersize, (set)

6шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod, upper and lower, 0.50 mm undersize, (set)

6шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod, upper and lower, 0.75 mm undersize, (set)

6шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod, upper and lower, 1.00 mm undersize, (set)

6шт.

36

J901085

BUSHING

- connecting rod, (Order J901569)

1шт.
