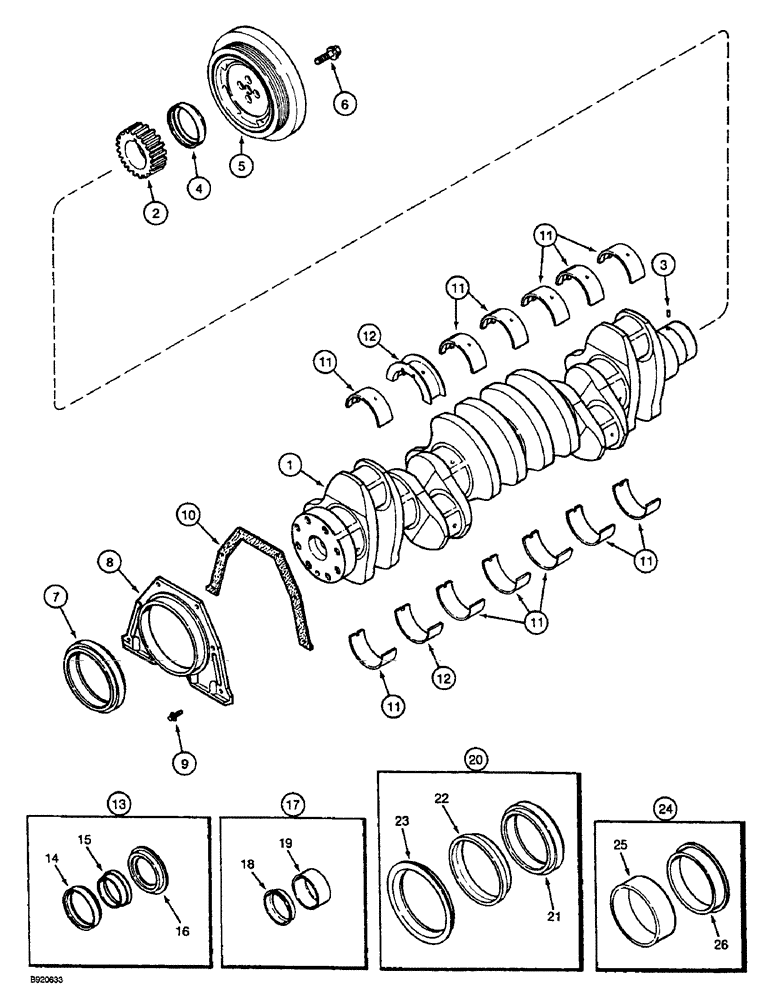

Запчасти Case 1088 (2-56) - CRANKSHAFT, 6T-590 ENGINE (02) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine, remanufactured, (North America only), Includes, Ref. 2 and 3

1шт.

JC918324

CRANK

RETURN NUMBER - crankshaft, (Use this number to return crankshaft for credit), Includes, Ref. 2 and 3

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new, (Replaces J908032), Includes, Ref. 2 and 3

1шт.

2

J919681

PINION

GEAR - crankshaft, (Replaces J912883 gear)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, (Order Ref. 13 kit)

1шт.

5

J958258

DAMPER

PULLEY - crankshaft damper

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref. 20 kit)

1шт.

8

J921043

REAR COVER

RETAINER - rear seal, (Replaces J913447 retainer)

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J914386

GASKET

- seal retainer (Replaces J901019)

1шт.

11

A77405

CRANKSHAFT BEARING

BEARING - main, standard, upper and lower set

6шт.

11

A77472

BEARING SET

BEARING - main, 0.25 mm undersize, upper and lower set

6шт.

11

A77474

BEARING SET

BEARING - main, 0.50 mm undersize, upper and lower set

6шт.

11

A77476

BEARING SET

BEARING - main, 0.75 mm undersize, upper and lower set

6шт.

11

A77478

BEARING SET

BEARING - main, 1.0 mm undersize, upper and lower set

6шт.

12

A77406

CRANKSHAFT BEARING

BEARING - main thrust, standard, upper and lower set

1шт.

12

A77473

THRUST BEARING

BEARING - main thrust, 0.25 mm undersize, upper and lower set

1шт.

12

A77475

THRUST BEARING

BEARING - main thrust, 0.50 mm undersize, upper and lower set

1шт.

12

A77477

THRUST BEARING

BEARING - main thrust, 0.75 mm undersize, upper and lower set

1шт.

12

A77479

THRUST BEARING

BEARING - main thrust, 1.00 mm undersize, upper and lower set

1шт.

13

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes, Ref. 14 -16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

J906080

PACKAGE, REPAIR

KIT - wear sleeve, crankshaft front, Includes, Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

20

A77809

GASKET KIT

KIT - oil seal, crankshaft rear, (Replaces J909410 kit), Includes, Ref. 21 - 23; Tool No Longer Included in Kit, Available from OTC

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

A77810

SERVICE KIT

KIT - wear sleeve, crankshaft rear, (Replaces J906081 kit), Includes, Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL

1шт.
