Запчасти Case 1088 (2-54) - ENGINE OIL FILL ASSEMBLY, 6T-590 ENGINE (02) - ENGINE

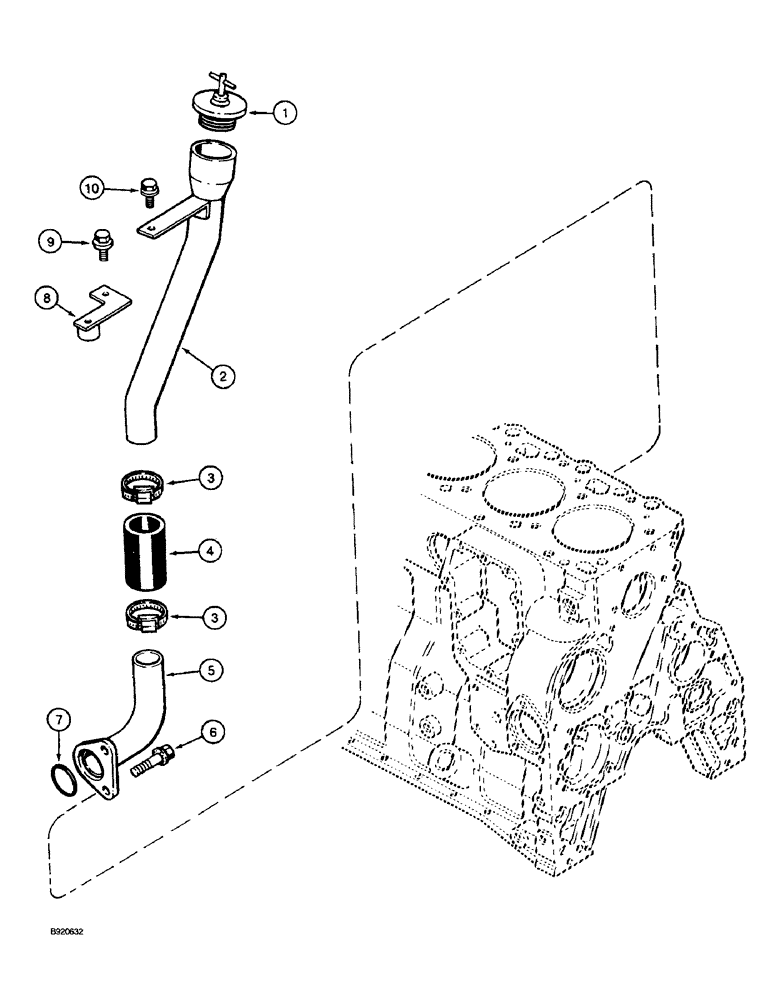

Схема запчастей Case 1088 - (2-54) - ENGINE OIL FILL ASSEMBLY, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A77424

FILLER CAP

CAP - fill, oil

1шт.

2

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill extension

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

retaining #24, 1.06/2.00 Type F Worm

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Tube Connecting 1.50 mm ID x 84.00 mm

1шт.

5

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill

1шт.

6

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

7

J906704

O-RING

- sealing

1шт.

8

J912683

TUBE

BRACKET - oil fill

1шт.

9

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

Выбрано товаров: 10
