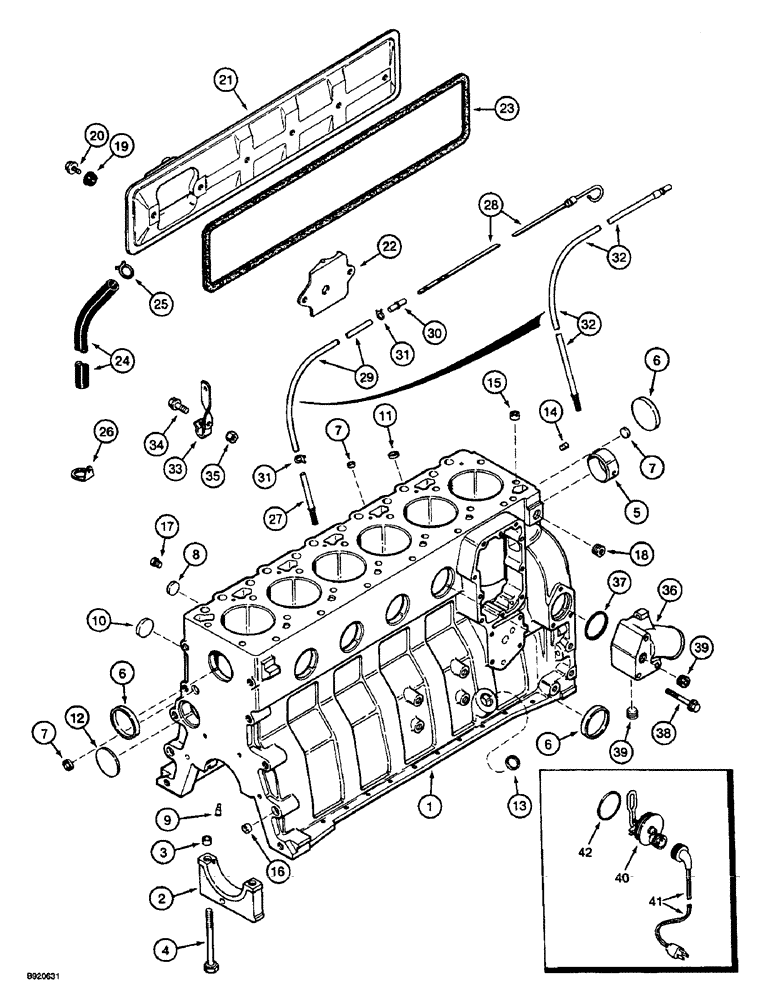

Запчасти Case 1088 (2-53A) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

1989062C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - uses 7 mm fuel injector nozzle, complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, (For service order 1989096C2 basic engine, below, replaces A174186), Includes, Ref. 1 - 42

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, cont. .

1шт.

1989096C2R

ENGINE, EXCHANGE

Engine (Exchange) Remanufactured

1шт.

1989096C2C

CORE-ENGINE

Return Part Number

1шт.

A77762

SKELETON ENGINE

KIT - short, engine, (No longer available, order component parts, J920392 short block and J920399 hardware kit separately), Includes, Ref. 1 - 42

1шт.

AR77762

ENGINE

Block Assembly, Engine Short, Remanufactured, Includes, Ref. 1 - 42

1шт.

AC77762

CORE-ENGINE

Return Part Number, Engine Short Block, (Use This Part Number To Return Block Core For Credit), Includes, Ref. 1 - 42

1шт.

JR933182

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933182

CORE-SHORT ENGINE

Return Part Number

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes, Ref. 1 - 42

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

A77760

CRANKCASE

KIT - stripped engine, (No longer available, order component parts separately), Includes, Ref. 1 - 42

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, Includes, Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, (See Figure 2-44, item 2)

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD, (Replaces J900965 plug)

6шт.

7

J900956

PLUG

PLUG expansion, 18 mm OD

3шт.

8

A77539

PLUG

PLUG - expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes, Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J911822

COVER

COVER - tappet

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J907617

GASKET

GASKET - tappet cover

1шт.

24

J906593

HOSE

Breather

1шт.

25

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

26

J909670

CLIP

CLIP - retaining

1шт.

27

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, if used, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

28

J907712

DIPSTICK

DIPSTICK - engine oil, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

29

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

TUBE - dipstick, flex, if used, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube, if used, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

31

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose, if used, engine serial number 52107489 and after (used 7mm injector nozzle)

2шт.

32

J279238

TUBE

TUBE - oil dipstick, one piece, if used, (Replaces J922886 tube), engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

33

J905804

BRACKET

BRACE - tube, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

34

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, Engine S/N 52107489 and after (Used 7mm injector nozzle)

1шт.

35

525-5100

NUT,M10 x 1.25, Cl 8

NUT - hex, 8 mm - 1.25, (Replaces J900240 nut), engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

36

J903103

MANIFOLD

CONNECTION - water inlet, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

37

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, engine serial number 52107489 and after (used 7mm injector nozzle)

1шт.

38

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, engine serial number 52107489 and after (used 7mm injector nozzle)

3шт.

39

A77429

PLUG

PLUG - hex socket, 1/2 inch PT, engine serial number 52107489 and after (used 7mm injector nozzle)

2шт.

A77634

KIT

KIT - engine block heater, Includes, Ref. 40 - 42

1шт.

40

J916127

RESISTOR

HEATER - engine block, 750W-120V

1шт.

40

J916662

UNIT HEATER

HEATER - engine block, 750W-240V

1шт.

41

J905113

CABLE

CABLE - engine block heater, 120V

1шт.

41

112837A1

PLUG

CABLE - engine block heater, 240V

1шт.

42

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
