Запчасти Case 1088 (2-50) - CYLINDER BLOCK, 6T-590 ENGINE, ENGINE S/N 52107489 AND AFTER (USED 7MM FULE INJECTOR NOZZEL) (02) - ENGINE

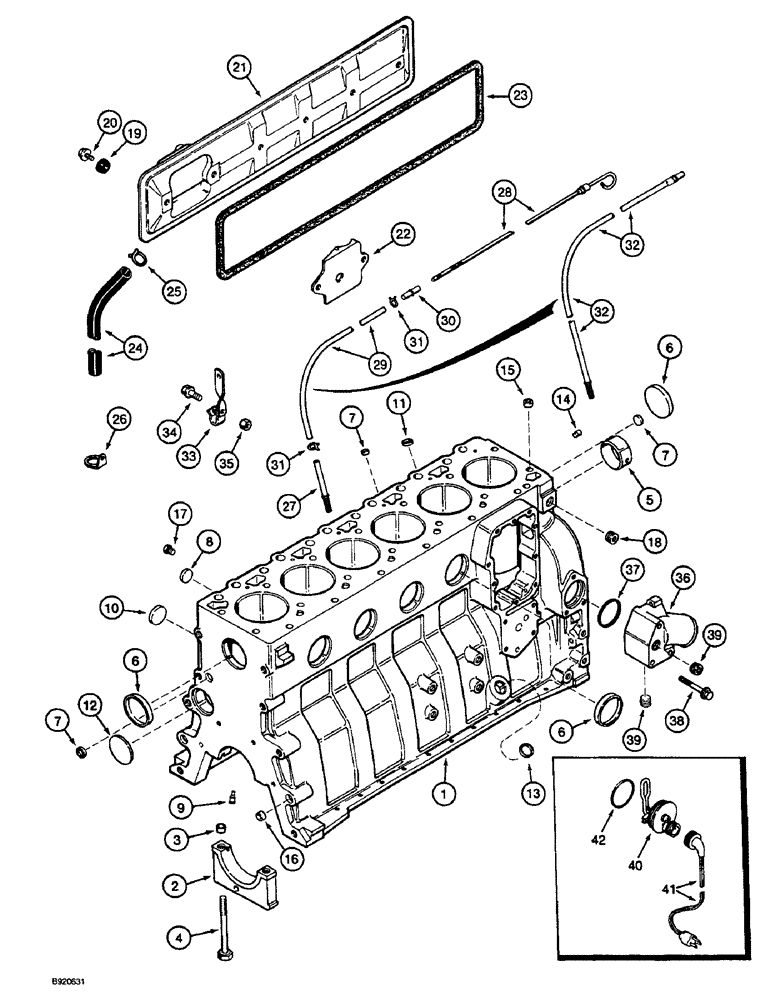

Схема запчастей Case 1088 - (2-50) - CYLINDER BLOCK, 6T-590 ENGINE, ENGINE S/N 52107489 AND AFTER (USED 7MM FULE INJECTOR NOZZEL) (02) - ENGINE

Артикул

Название

Примечание

Количество

A174186

ENGINE ASSEMBLY

- complete, (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (Replaces A174002), Includes, Ref. 2 - 8

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY - engine short, remanufactured, (North America only), Includes, Ref. 2 - 8

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER - engine short block, (Use this part number to return block core for credit), Includes, Ref. 2 - 8

1шт.

A77762

SKELETON ENGINE

KIT - short, engine, (No longer available, order component parts, J920392 short block and J920399 hardware kit separately), Includes, Ref. 2 - 8

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes, Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

A77760

CRANKCASE

KIT - stripped engine, (No longer available, order component parts separately), Includes, Ref. 2 - 8

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, Includes, Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, (See Figure 2-44, Ref. 2)

1шт.

6

A77782

PLUG

- expansion, 58 mm OD, (Replaces J900965 plug)

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

A77539

PLUG

- expansion, 26 mm

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes, Ref. 9 - 18

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

- expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

- cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J911822

COVER

- tappet

1шт.

22

J907586

BAFFLE

- tappet cover

1шт.

23

J907617

GASKET

- tappet cover

1шт.

24

J906593

HOSE

Breather

1шт.

25

J904230

CLAMP,25.4mm

- spring hose

1шт.

26

J909670

CLIP

- retaining

1шт.

27

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, if used

1шт.

28

J907712

DIPSTICK

- engine oil

1шт.

29

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

- dipstick, flex, if used

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube, if used

1шт.

31

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose, if used

2шт.

32

J279238

TUBE

- oil dipstick, one piece, if used, (Replaces J922886 tube)

1шт.

33

J905804

BRACKET

BRACE - tube

1шт.

34

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

35

525-5100

NUT,M10 x 1.25, Cl 8

- hex, 8 mm - 1.25, (Replaces J900240 nut)

1шт.

36

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

37

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

38

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

39

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

A77634

KIT

- engine block heater, Includes, Ref. 40 - 42

1шт.

40

J916127

RESISTOR

HEATER - engine block, 750W-120V

1шт.

40

J916662

UNIT HEATER

HEATER - engine block, 750W-240V

1шт.

41

J905113

CABLE

- engine block heater, 120V

1шт.

41

112837A1

PLUG

CABLE - engine block heater, 240V

1шт.

42

J910517

O-RING

- heater sealing, engine block

1шт.

Выбрано товаров: 54
