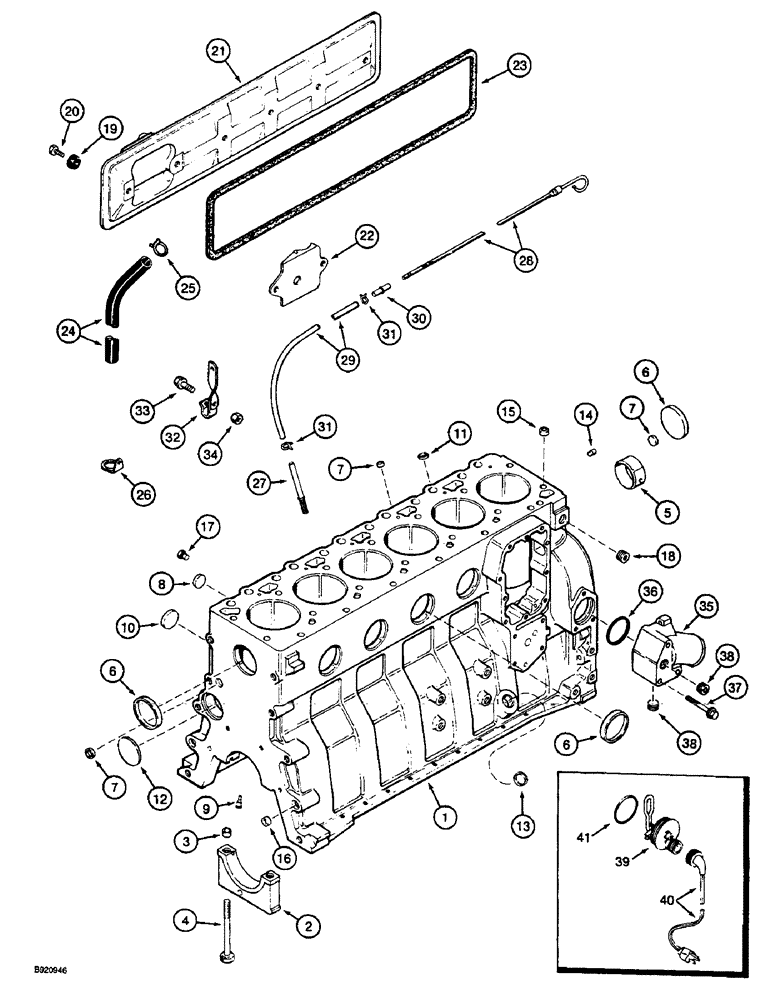

Запчасти Case 1088 (2-46) - CYLINDER BLOCK, 6T-590 ENGINE, PRIOR TO ENGINE S/N 52107489 (USES 9MM FULE INJECTOR NOZZEL) (02) - ENGINE

A174186

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - uses 9 mm fuel injector nozzle, complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, (For service order 1989096C2 basic engine, Fig. 2-50), Includes, Ref. 2-8

1шт.

A174356

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines

1шт.

JR910510

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - engine short, remanufactured, (For North America only), Includes, Ref. 2 - 8

1шт.

JC910510

CORE-ENGINE

RETURN NUMBER - engine short block, (Use this part number to return block core for credit), Includes, Ref. 2 - 8

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

J910510

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, (For service order (1) each of the following J920391 short block assemlby, J920399 hardware kit

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine, no longer available, (For service order J916255 stripped block, J920399 hardware kit, Figure 2-50, and J918212 oil pump, Figure 2-38)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, (See Figure 2-44, Ref. 2)

1шт.

6

J900965

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion (Replaces 23624R1) Cup, 1", Stainless

4шт.

J905813

PACKAGE, REPAIR

KIT - block hardware, Includes, Ref. 9 - 18

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

J900687

PLUG

PLUG - expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J911822

COVER

COVER - tappet

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J907617

GASKET

GASKET - tappet cover, (Replaces J904776)

1шт.

24

J906593

HOSE

Breather

1шт.

25

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

26

J909670

CLIP

CLIP - retaining

1шт.

27

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick

1шт.

28

J907712

DIPSTICK

DIPSTICK - engine oil

1шт.

29

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

TUBE - dipstick flex

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil dipstick tube

1шт.

31

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

32

J905804

BRACKET

BRACE - tube

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

34

J900240

NUT

NUT - hex, 8 mm

1шт.

35

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

36

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

37

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

38

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

A77634

KIT

KIT - engine block heater, Includes, Ref. 39 - 41

1шт.

39

J916127

RESISTOR

HEATER - engine block, 750W-120V

1шт.

39

J916662

UNIT HEATER

HEATER - engine block, 750W-240V

1шт.

40

J905113

CABLE

CABLE - engine block heater, 120V

1шт.

40

112837A1

PLUG

CABLE - engine block heater, 240V

1шт.

41

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
