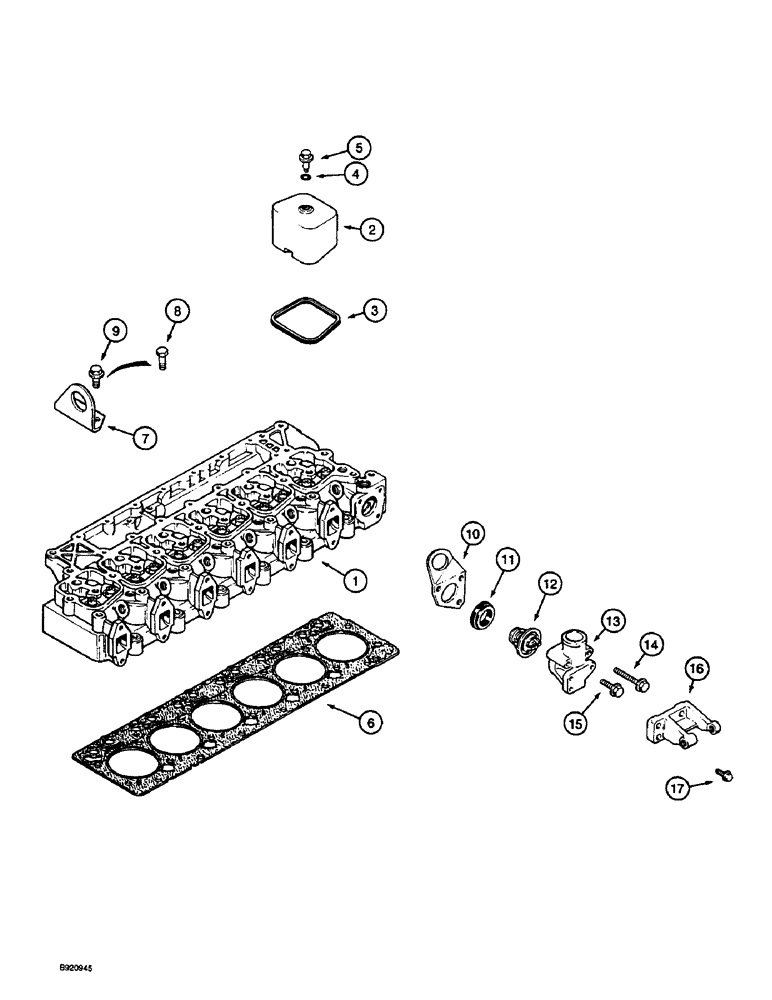

Запчасти Case 1088 (2-40) - CYLINDER HEADCOVER, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, (See Figure 2-42 for correct cylinder head and parts list)

1шт.

2

J902604

COVER

- rocker arm

6шт.

3

J902666

GASKET

SEAL - rocker arm cover

6шт.

4

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, (Replaces J910824 O-ring)

6шт.

5

J907049

BOLT,Hex

- hex flange, special

6шт.

6

J921394

GASKET

- head standard, (1 notch), (Replaces A77755 and J918305 gasket)

1шт.

6

J921396

CYLINDER HEAD GASKET

- head, 0.25 mm overthick (2 notches), (Replaces J917359 and J918306 gasket)

1шт.

6

J921398

GASKET

- head, 0.50 mm overthick (3 notches), (Replaces J915724 and J918307 gasket)

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

If used Hex, M12 x 25, 8.8, Full Thd

2шт.

9

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, if used

2шт.

10

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - water thermostat and housing, Includes, Ref. 11

1шт.

11

J923331

GASKET

- thermostat housing, (Replaces J920020 gasket)

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, and housing

1шт.

13

J914409

HOUSING

- thermostat

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

16

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
