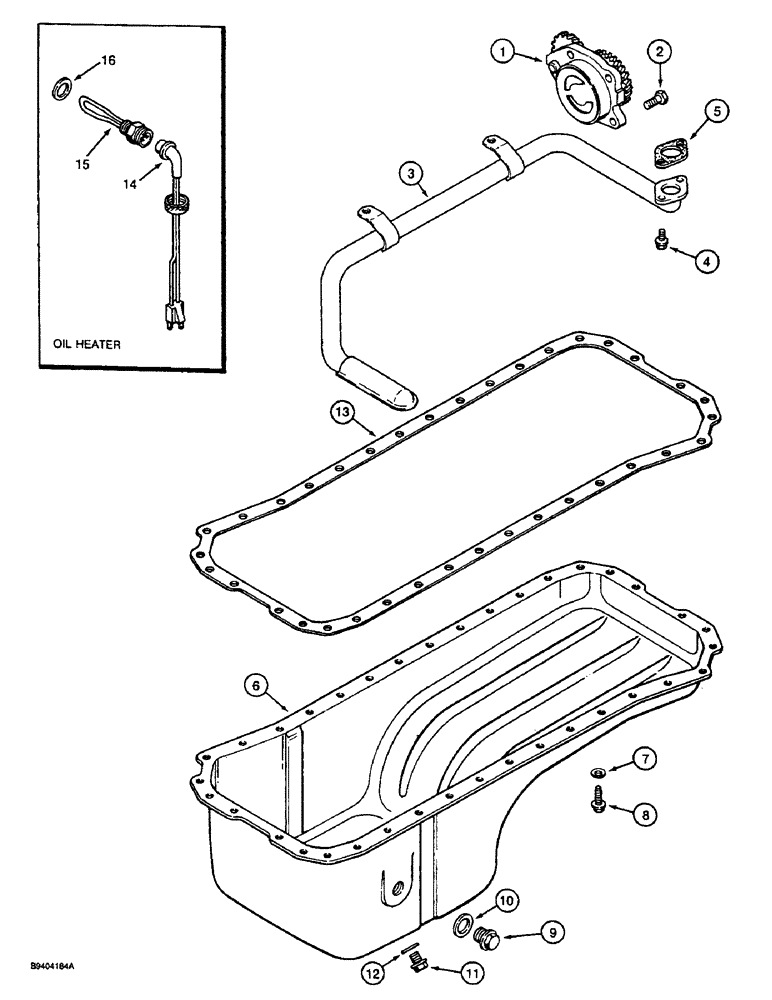

Запчасти Case 1088 (2-38) - OIL PUMP AND OIL PAN, 6T-590 ENGINE (02) - ENGINE

1

J926203

PUMP, ENGINE OIL

PUMP - oil engine, (Replaces J914006 and J918212 pump)

1шт.

JR926203

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - engine oil, remanufactured, (North America only) (Replaces JR914006 and JR918212)

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - oil pump, (Use this part number to return pump core for credit) (Replaces JC914006 and JC918212)

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 30 mm

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE - with screen, oil suction, (Replaces J918268 tube)

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

5

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

J907537

SPRING WASHER

WASHER - Belleville, if used

36шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange, special, M8 x 25, (Replaces J907860 bolt)

36шт.

9

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, (Replaces J904386 plug)

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

11

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 18 mm - 1.5, (Replaces J911638 plug)

1шт.

12

J920773

SEALING WASHER

WASHER - seal, drain plug, replaces J900216 washer

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, (Order A77676 kit shown below)

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 5, 12 and 13

1шт.

A77490

KIT

KIT - heater, engine oil, Includes, Ref. 14 and 15

1шт.

When P/N A77490 kit is ordered, Ref.16, P/N J902425 washer must also be ordered.

1шт.

14

J905113

CABLE

CABLE - engine block heater, oil

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, oil, engine

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, engine oil heater

1шт.

When P/N A77490 kit is ordered, Ref.16, P/N J902425 washer must also be ordered.

1шт.
