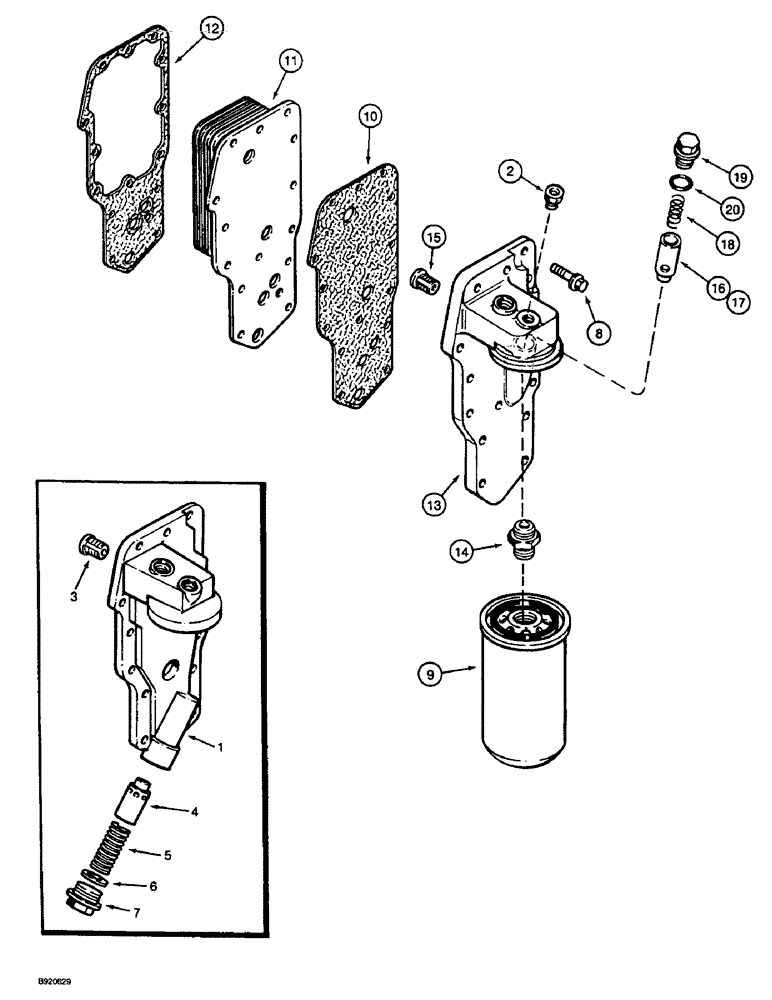

Запчасти Case 1088 (2-36) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - oil filter and cooler, bottom port, prior to Engine Serial Number 52107489

1шт.

2

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure, three hole

1шт.

5

J903261

SPRING

- compression, 55 mm free length, 17 coils, (No longer used, must replace with J918427 spring, Ref. 18, and J918428 plunger, Ref. 17)

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- valve

1шт.

8

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

9

J908615

FILTER

- engine oil (cartridge)

1шт.

10

J918257

GASKET

- filter head, (Replaces J912532)

1шт.

11

J921558

COOLER

CORE - cooler, oil, (Replaces J918293 and J911940 core)

1шт.

12

J918256

GASKET

- cooler core, (Replaces J914387)

1шт.

13

J918954

HEAD

ASSEMBLY - oil filter and cooler, Engine Serial Number 52107489 and after, Includes, Ref. 14

1шт.

Part of repair kit P/N J915766

1шт.

14

J909355

ADAPTER

- filter head

1шт.

15

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

Part of repair kit P/N J915766

1шт.

16

J914084

VALVE

PLUNGER - regulator, pressure, one hole, (No longer used, must replace with J918428 plunger, Ref. 17, and J918427 spring, Ref. 18)

1шт.

Part of repair kit P/N J915766

1шт.

17

J918428

PLUNGER

- regulator, pressure, two hole, (Replaces J914084)

1шт.

18

J918427

SPRING

- compression

1шт.

19

J915787

PLUG

- threaded

1шт.

Part of repair kit P/N J915766

1шт.

20

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

Part of repair kit P/N J915766

1шт.

J915766

KIT

- repair, Includes: Ref. 13, 15, 16, 19 and 20 (No longer available, order component parts separately)

1шт.
