Запчасти Case 1088 (2-34) - TURBOCHARGER, 6T-590 ENGINE (02) - ENGINE

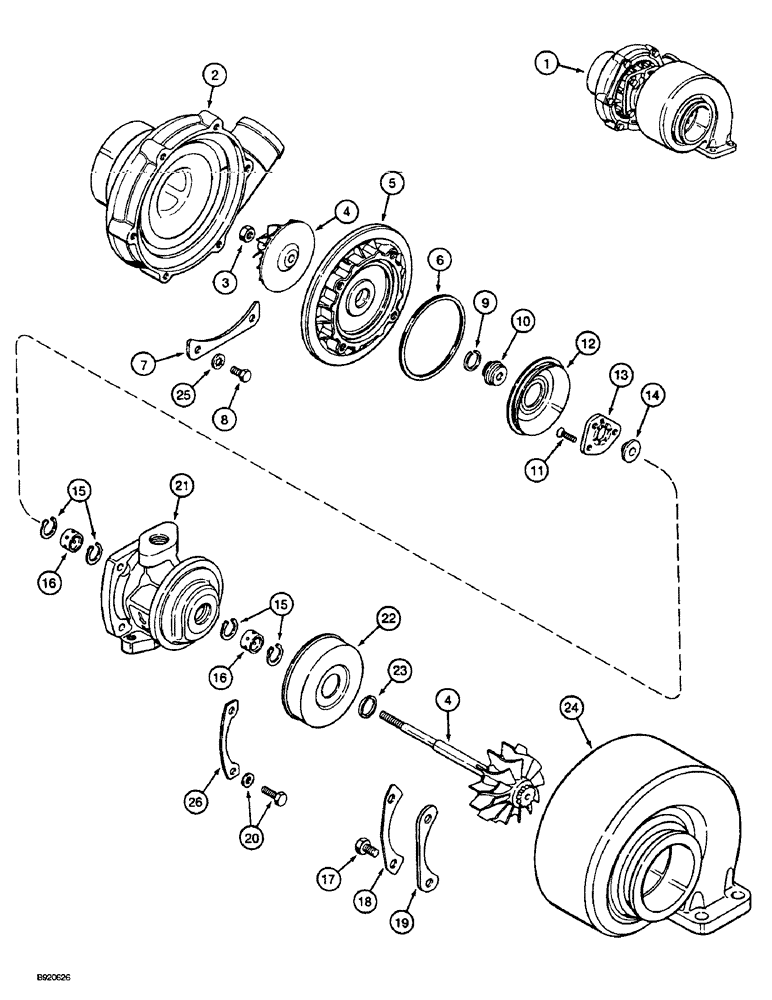

Схема запчастей Case 1088 - (2-34) - TURBOCHARGER, 6T-590 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, 12 mm straight thread port in bearing housing, (Replaces J907028), Includes, Ref. 2 - 25

1шт.

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR919113

REMAN-TURBOCHARGER

Turbocharger Assembly - remanufactured, (Replaces JR907028)

1шт.

1

JC919113

CORE-TURBOCHARGER

Return Part Number - use this part number to return turbocharger core for credit

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW - cap

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx

3шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - lock

8шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Ref. 6, 8, 9, 11, 13, 15 thru 18, 20, 23, 25 and 26, replaces J904772 kit

1шт.

Выбрано товаров: 44
