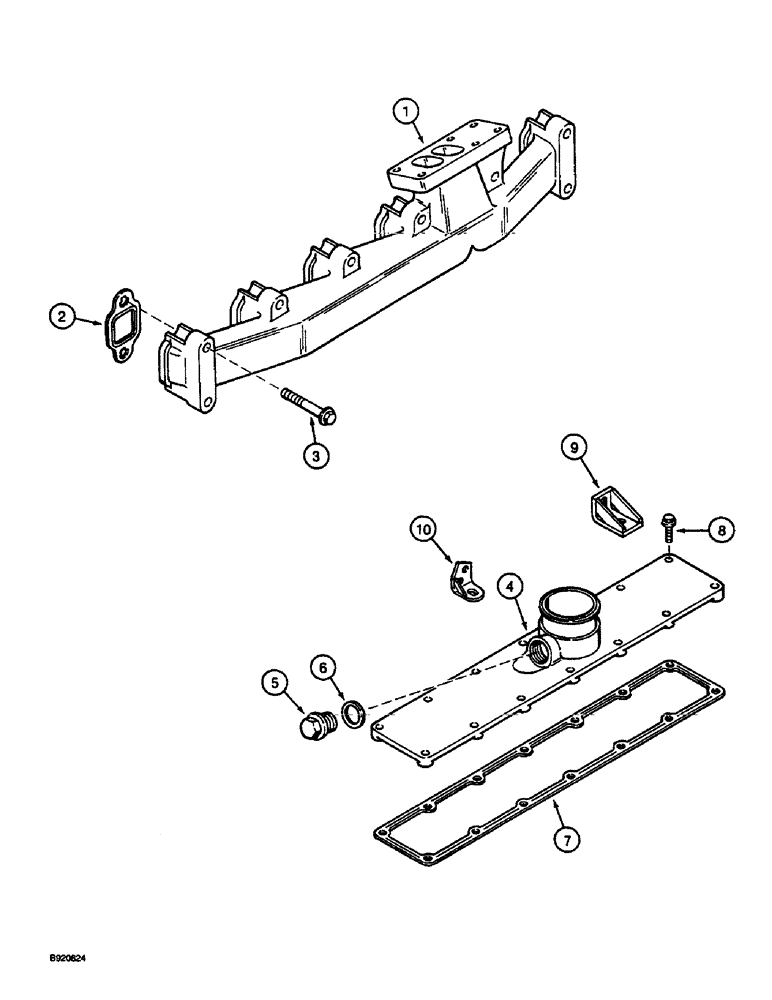

Запчасти Case 1088 (2-30) - MANIFOLDS, 6T-590 ENGINE (02) - ENGINE

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 65 mm, class 10.9, exhaust

12шт.

A77418

KIT

- manifold, intake, Includes, Ref. 4 - 10

1шт.

4

J904862

COVER

- manifold, intake

1шт.

5

J907185

PLUG

- manifold, (Remove to install cold start), intake

1шт.

6

J906773

WASHER

- plug sealing, intake

1шт.

7

J914029

GASKET

- intake cover

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold Hex Flg Hd, M8 x 1.25 x 25

14шт.

9

J917777

BRACE

BRACKET - fuel line, (See Figure 3-8, Ref. 18), intake

2шт.

10

J917778

BRACE

BRACKET - fuel line, (See Figure 3-8, Ref. 23), intake

1шт.
