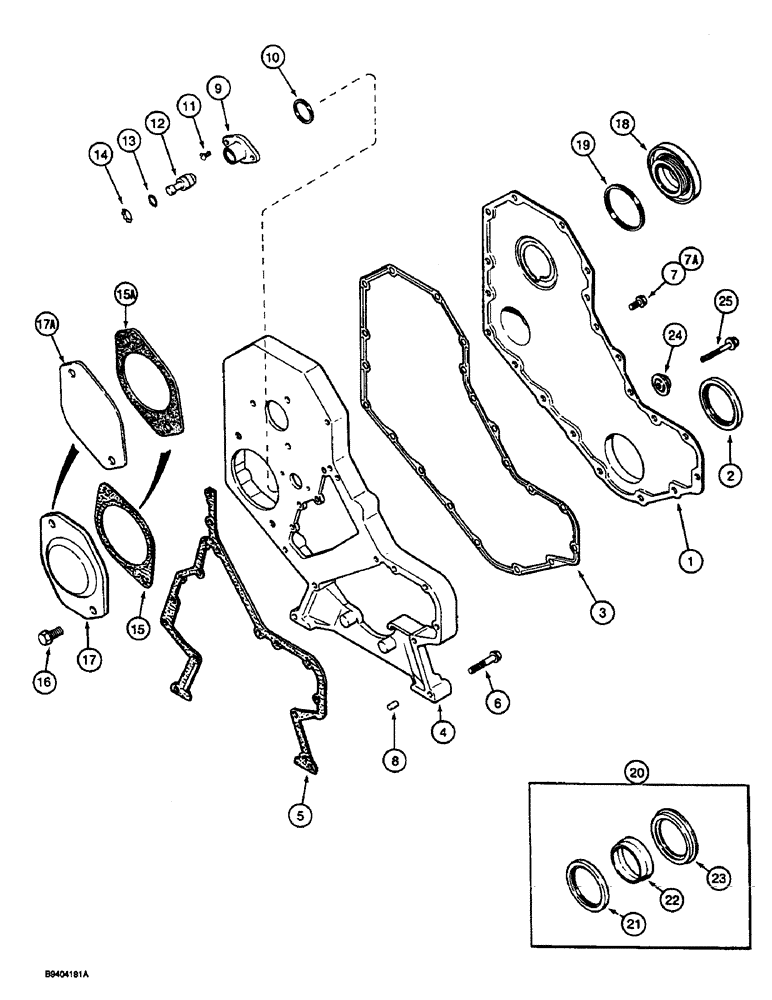

Запчасти Case 1088 (2-28) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, front, (Order Ref. 20, J904353 seal kit below)

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920518

HOUSING

- timing gear, (Replaces J917759 housing)

1шт.

5

J916131

GASKET

- gear housing, (Replaces J914384)

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm (Qty. 11-16)

1шт.

Ref. #7 845-8016- the proper bolt to use is J924962 (or J900629 bolt with Loctite)

1шт.

7a

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , special Hex Flg, M8 x 16, 8.8, Full Thd

5шт.

8

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

9

J919683

HOUSING

- timing pin, (Replaces J905933)

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing, (Replaces J914092)

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

13

J913994

O-RING

- sealing, timing pin

1шт.

14

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

15

J913192

GASKET

- cover plate, (No longer available, for service order J919601 gasket, Ref. 15A)

1шт.

15a

J919601

GASKET

- cover plate

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

17

J909918

PLATE

- accessory drive cover, (No longer available, for service order J914868 plate, Ref. 17A)

1шт.

17a

J914868

COVER

PLATE - accessory drive cover

1шт.

18

J903463

PLUG,M63 x 5

- front access

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

20

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes, Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

24

J912772

RETAINER

- belt

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.
