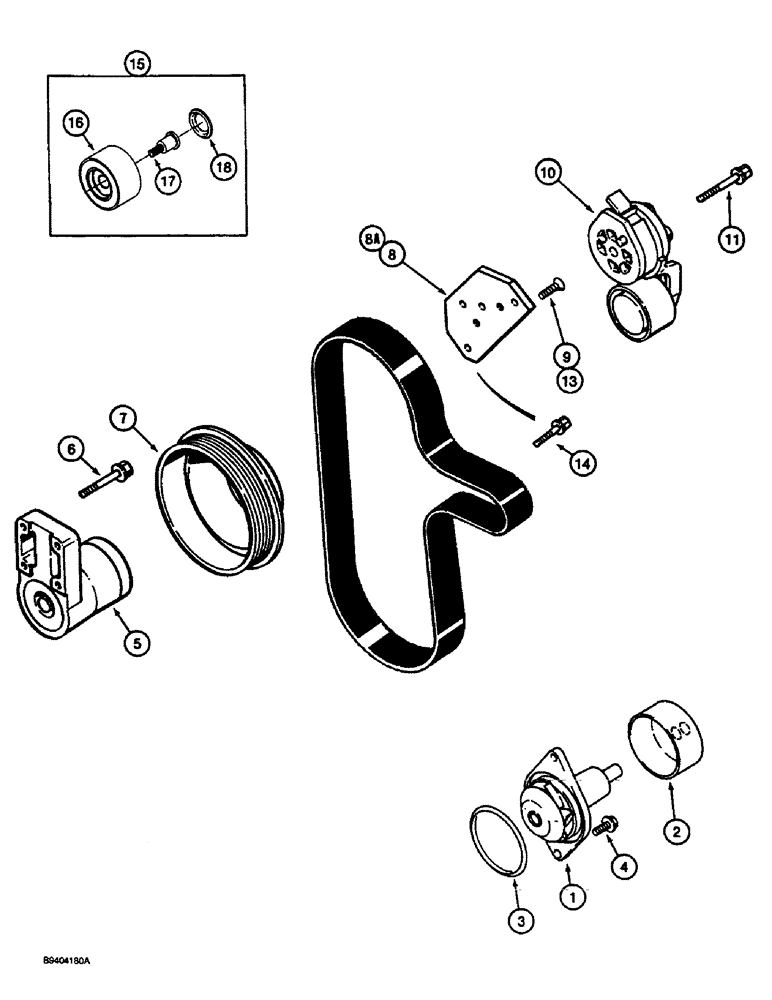

Запчасти Case 1088 (2-26) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - water pump, (Use this part number to return pump core for credit)

1шт.

A77703

PUMP, WATER

KIT - water pump, Includes, Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1088 Long Track Turntable Leveler

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

- fan

2шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8, Fan bracket to cylinder block

4шт.

7

J914462

PULLEY,163mm OD

- fan, 60 mm bolt circle (1.1:1 ratio)

1шт.

8

J904548

BRACKET

- belt tension, (No longer available, order Ref. 8A, J925207 bracket plus Ref. 13 and 14 hardware Ref.)

1шт.

8a

J925207

SUPPORT

BRACKET - belt tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm, special, (Used with Ref. 8, J904548 bracket only)

4шт.

10

J918944

BELT TENSIONER

TENSIONER - belt, (Replaces J914086)

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

13

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm, special, (Used with Ref. 8A, J925207 bracket only, upper hole)

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, (Used with Ref. 8A, J925207 bracket only, lower hole)

1шт.

15

A77817

KIT

KIT - pulley assembly, belt tensioner, (Used to replace pulley of Ref. 10, J918944 belt tensioner), Includes, Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.
