Запчасти Case 1088 (2-22) - COOLANT RECOVERY SYSTEM, P.I.N. FROM 20210 AND AFTER, P.I.N. FROM 106905 AND AFTER (02) - ENGINE

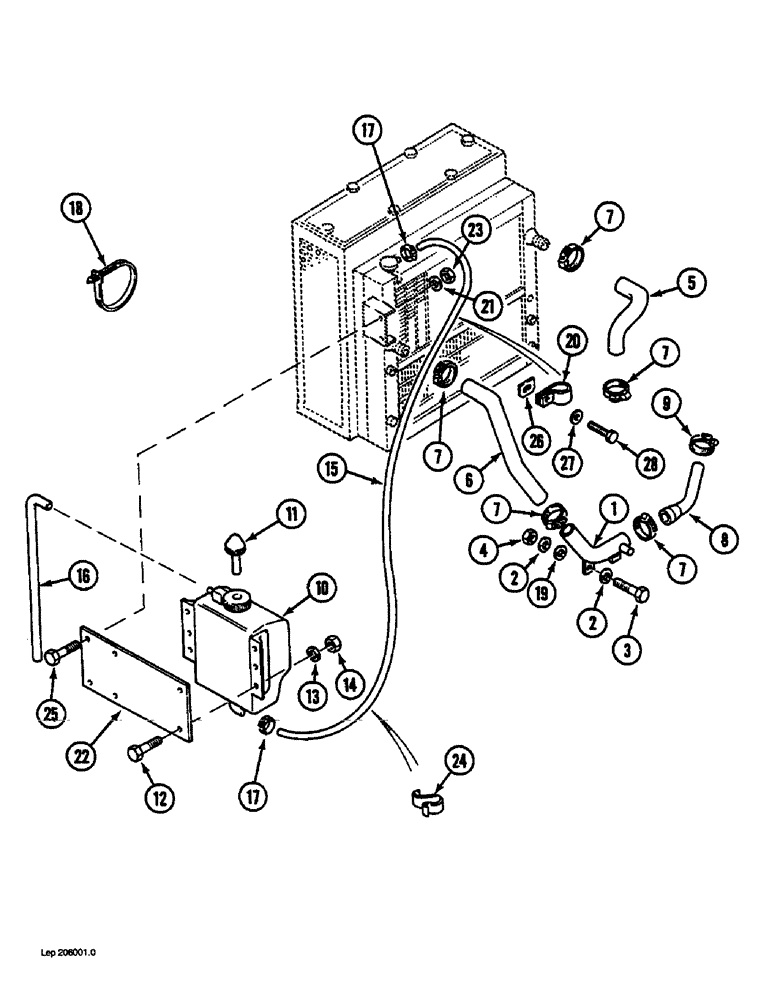

Схема запчастей Case 1088 - (2-22) - COOLANT RECOVERY SYSTEM, P.I.N. FROM 20210 AND AFTER, P.I.N. FROM 106905 AND AFTER (02) - ENGINE

Артикул

Название

Примечание

Количество

1

P3950193

MANIFOLD

PIPE - radiator hose to engine hose

1шт.

2

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

3

P433814

SCREW

BOLT - hex, 10 mm x 60 mm

2шт.

4

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

5

P7831926

LARGE HOSE

HOSE - pipe to engine, (Replaces P6631957)

1шт.

6

P7831928

LARGE HOSE

HOSE - radiator, lower, (Replaces P6631959)

1шт.

7

P136902

COLLAR CLAMP

CLAMP - hoses

5шт.

8

P7831927

HOSE,60.00 mm ID x 245.00 mm, SAE 20R4 Class D1

Radiator, Upper, Replaces P6631958 60.00 mm ID x 245.00 mm, SAE 20R4 Class D1

1шт.

9

P36935

COLLAR CLAMP

CLAMP -, Serial Range: hose-engine

1шт.

10

A184395

RESERVOIR

BOTTLE - coolant recovery

1шт.

11

1547924C1

CAP

- recovery bottle, (Replaces P3037433)

1шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

4шт.

13

P35001

WASHER

- flat, 6 mm

8шт.

14

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

4шт.

15

NSS

NOT SOLD SEPARAT

HOSE - radiator overflow, 800 mm long, cut from P1103638

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - recovery bottle overflow, 350 mm long, cut from P1103638

1шт.

17

P36951

COLLAR

CLAMP - overflow hoses

2шт.

18

P51946

CLAMP

TIE STRAP - overflow hose, 258 mm long

1шт.

19

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

20

P51961

CLAMP

- radiator overflow hose

1шт.

21

P35002

WASHER

- flat, 6 mm

2шт.

22

P3522836

SUPPORT

- bottle

1шт.

23

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

24

P1736917

CLASP

SUPPORT - hose, radiator overflow

1шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

26

P5123410

PLATE

- clamp

1шт.

27

P35020

WASHER

SPACER - bolt, 7 mm thick

1шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

Выбрано товаров: 28
